Precision Twist Drill SB-10DC 7466230 solid carbide rotary burr, 1/4" (0.25") cutting diameter, cylinder shape with end cut, double cut geometry. 1/4" cylindrical shank, 5/8" usable length, 2" overall length. Bright finish. For deburring and shaping steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and hardened materials.

Burr Shape

B - Cylinder Shape with endcut

Burr Type Code (BTC)

Double Cut Geometry

BurrEndShot_DICT_SEL

End Cut Burr End

Coating

Bright

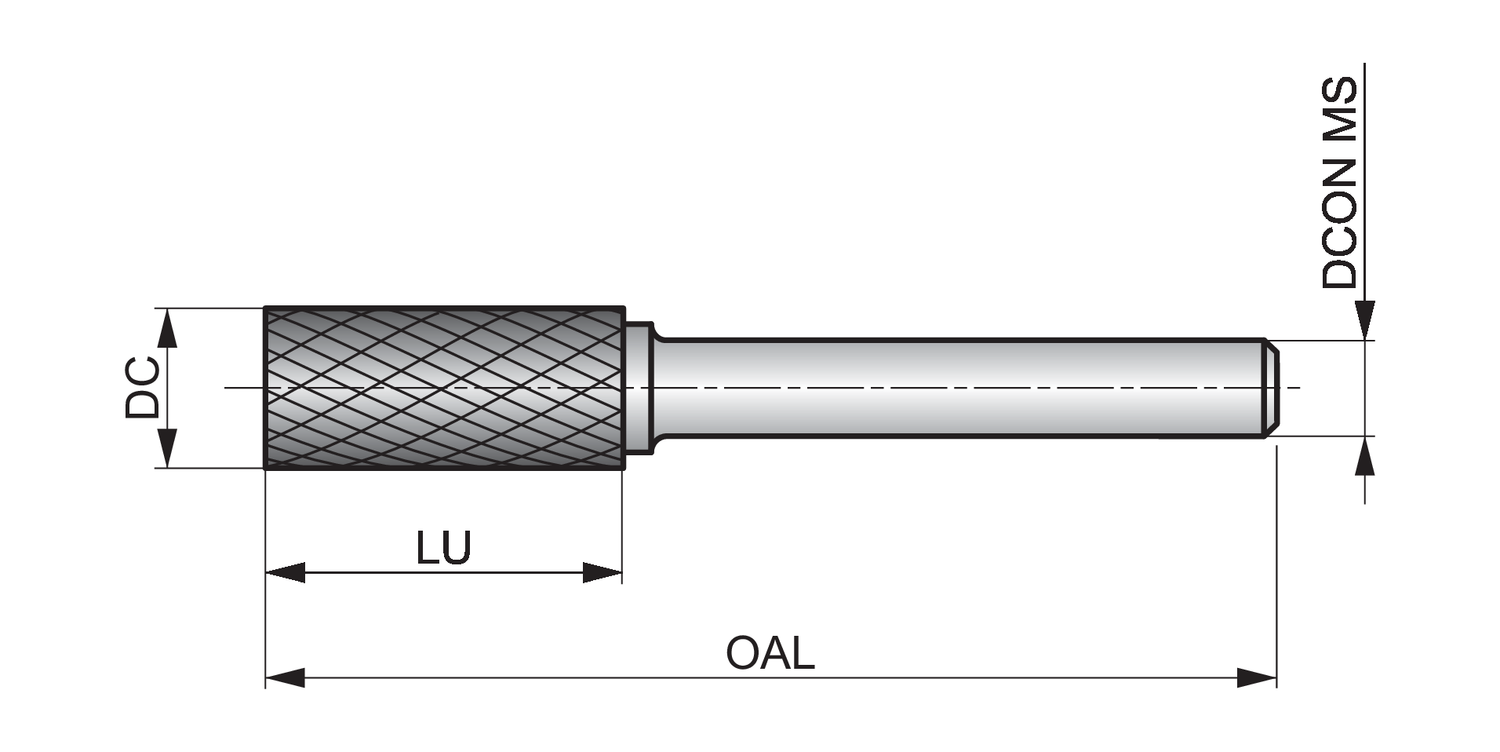

Connection diameter - fractional inch (DCON MS)

1/4

Connection diameter - inch (DCON MS)

0.25

Connection diameter - millimeter (DCON MS)

6.35

Cutting diameter - fractional inch (DC)

1/4

Cutting diameter - inch (DC)

0.25

Cutting diameter - millimeter (DC)

6.35

Depth of cut maximum - fractional inch (APMX)

5/8

Material

HM

Overall length - fractional inch (OAL)

2

Overall length - inch (OAL)

2

Overall length - millimeter (OAL)

50.8

Shank

Cylindrical shank

Usable Length - fractional inch (LU)

5/8
