333HD21/64 7233765 Heavy Duty Jobber Drill 21/64 inch
MODEL 7233765
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$12.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
TiN
Coating property (CTP)
1

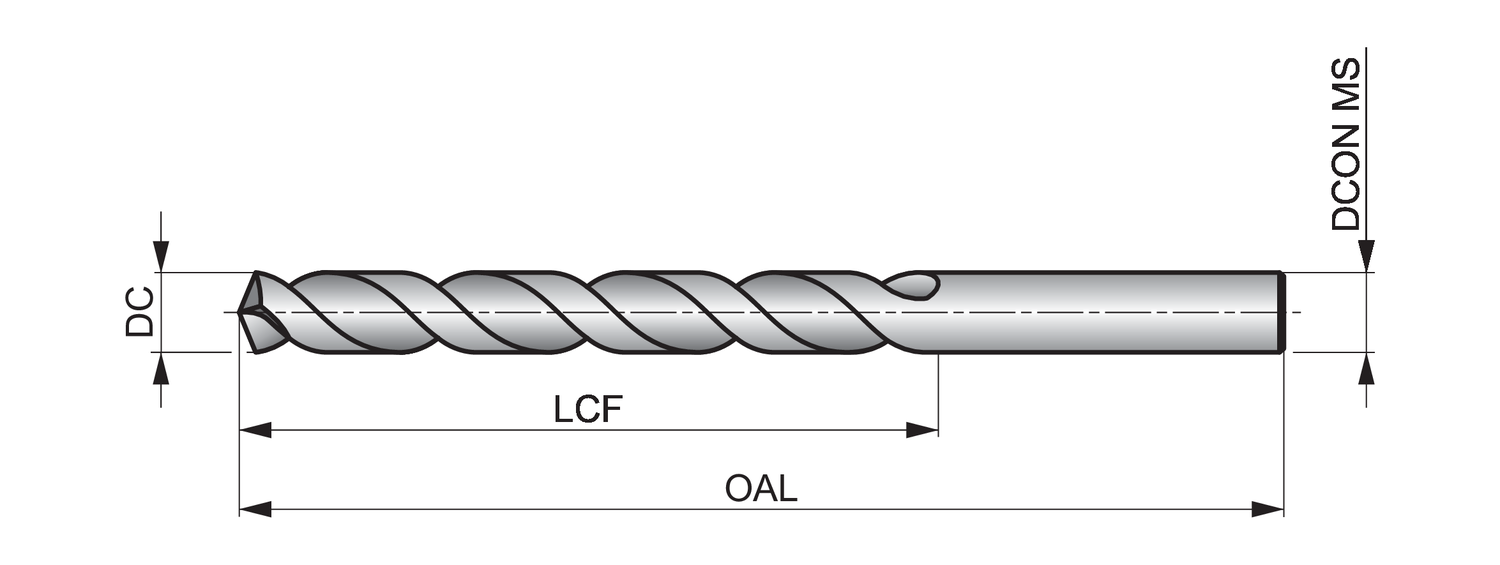

Cutting diameter - fractional inch (DC)
21/64
Cutting diameter - inch (DC)
0.3281
Cutting diameter - millimeter (DC)
8.33
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3.5/16
Length chip flute - inch (LCF)
3.3125
Material
HSS
Overall length - fractional inch (OAL)
4.5/8
Overall length - millimeter (OAL)
117.48
Point Angle (SIG)
135
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
4
Heavier web construction than 301JD MRO drills, providing greater rigidity and strength in drilling medium strength alloy materials.
The Self-Centering 135° Split Point reduces thrust requirements and minimizes ‘walking’ particularly on curved surfaces.
