Precision Twist Drill 342SDT37/64, part number 7233821, 37/64" (0.5781") HSS reduced shank drill with steam tempered/bronze finish and 118° point. 1/2" reduced cylindrical shank, 3" flute length, 6" overall length, ANSI standard, right-hand cut. For hand operations in steel, cast iron, stainless steel, and non-ferrous metals.
MODEL 7233821
$48.36 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
ST/Bronze

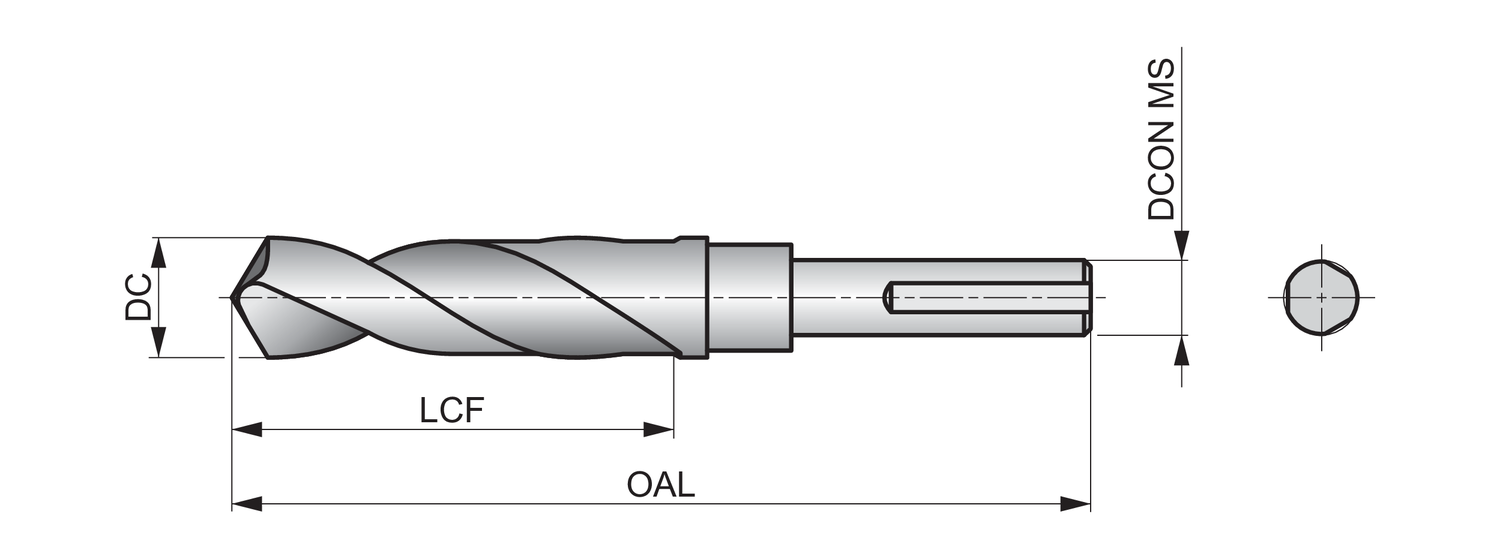

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Cutting diameter - fractional inch (DC)
37/64
Cutting diameter - inch (DC)
0.5781
Cutting diameter - millimeter (DC)
14.68
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3"
Length chip flute - inch (LCF)
3
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
6"
Overall length - inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
118
Shank
Reduced Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
4
Designed with a ½” diameter reduced shank, ideal for portable drilling and drill presses where the maximum chuck capacity is ½”.
Self-Centering 118° Split Point for reduced thrust.
Steam & Bronze tempered surface treatment provides both abrasion resistance and improved lubricity.
