Image for Illustration purposes only. Actual product may vary
20101/8X27X1 6008629 Chromium Steel NPT Adjustable Die ANSI 1/8 inch x 27
MODEL 6008629
$28.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ANSI"

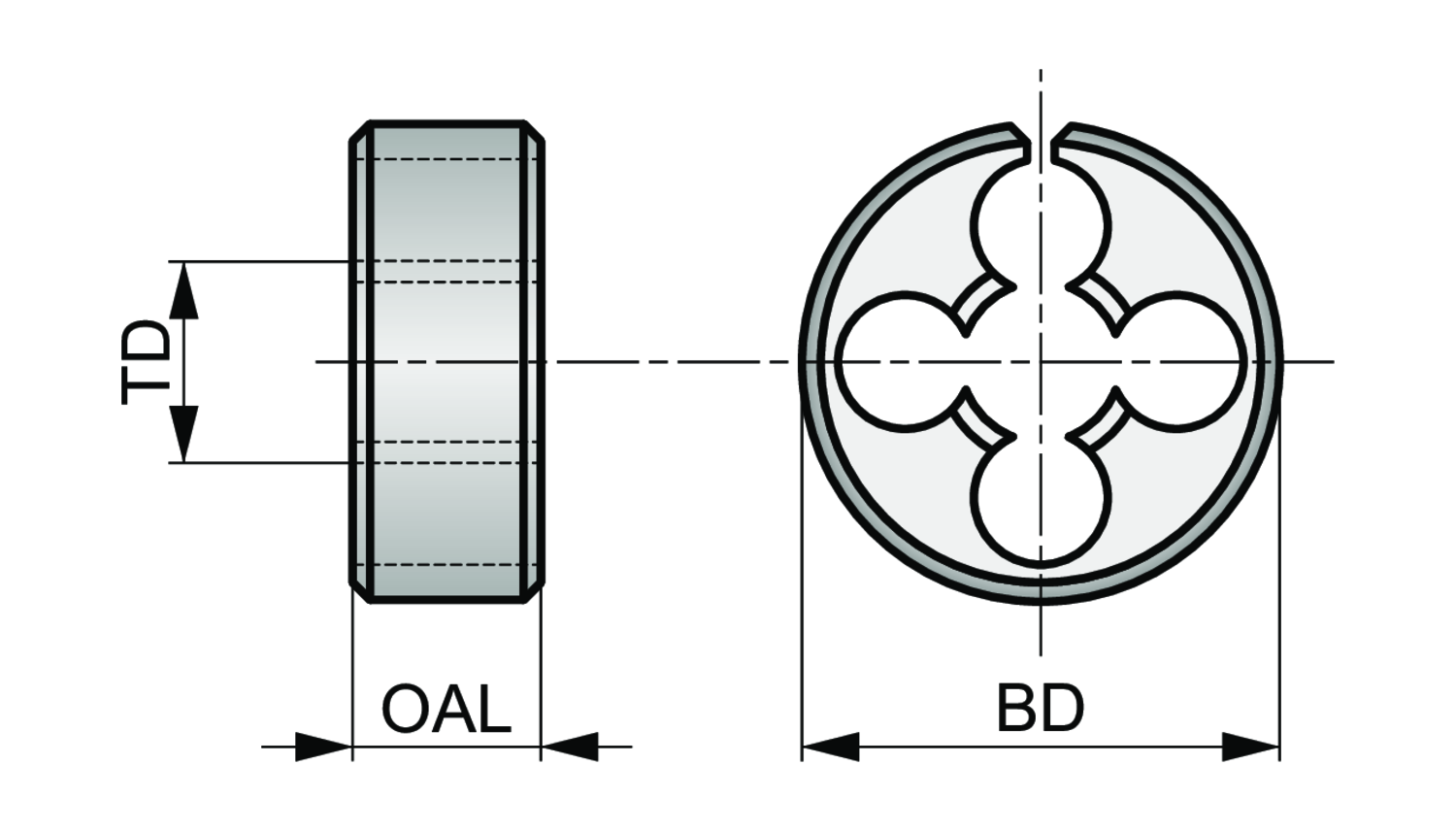

Body diameter - fractional inch (BD)
1
Body diameter - millimeter (BD)
25.4
Coating
Bright
Hand (Cutting direction)
Right
Material
Chromium steel
Overall length - fractional inch (OAL)
3/8
Overall length - millimeter (OAL)
9.53
Thread diameter size (TDZ)
1/8
Thread form (THFT)
NPT - National taper pipe
Threads per inch (TPI)
27
Adjustable circular split die, for National Pipe Taper thread NPT 1/8" with 27 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to ANSI standard with 1" outside diameter and 3/8" thickness, made from chromium tool steel with bright finish for threading in free machining and plain carbon steel and gray, malleable, ductile and compacted graphite cast-iron.
