6009030

Image for Illustration purposes only. Actual product may vary

View in markdown

20251.1/8X7 6009030 Chromium Steel UNC Dienut ANSI 1.1/8 inch x 7

MODEL 6009030

BRAND

Union Butterfield

SKU

6091504

WEIGHT

0.516 lb

UOM

each

$54.69 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI"

Coating

Bright

Drive size - inch (DRVS)

2

Drive size - millimeter (DRVS)

50.8

Hand (Cutting direction)

Right

Material

Chromium steel

Overall length - fractional inch (OAL)

1

Overall length - millimeter (OAL)

25.4

Thread diameter size (TDZ)

1.1/8

Thread form (THFT)

UNC - Unified Coarse

Threads per inch (TPI)

7

Hexagon die nut, for Unified National Coarse thread UNC 1.1/8" with 7 TPI, dimensions according to ANSI standard with 2" width across flat and 1" thickness, made from chromium tool steel with bright finish for repairing damaged thread in free machining and plain carbon steel and gray, malleable, ductile and compacted graphite cast-iron.

Catalog

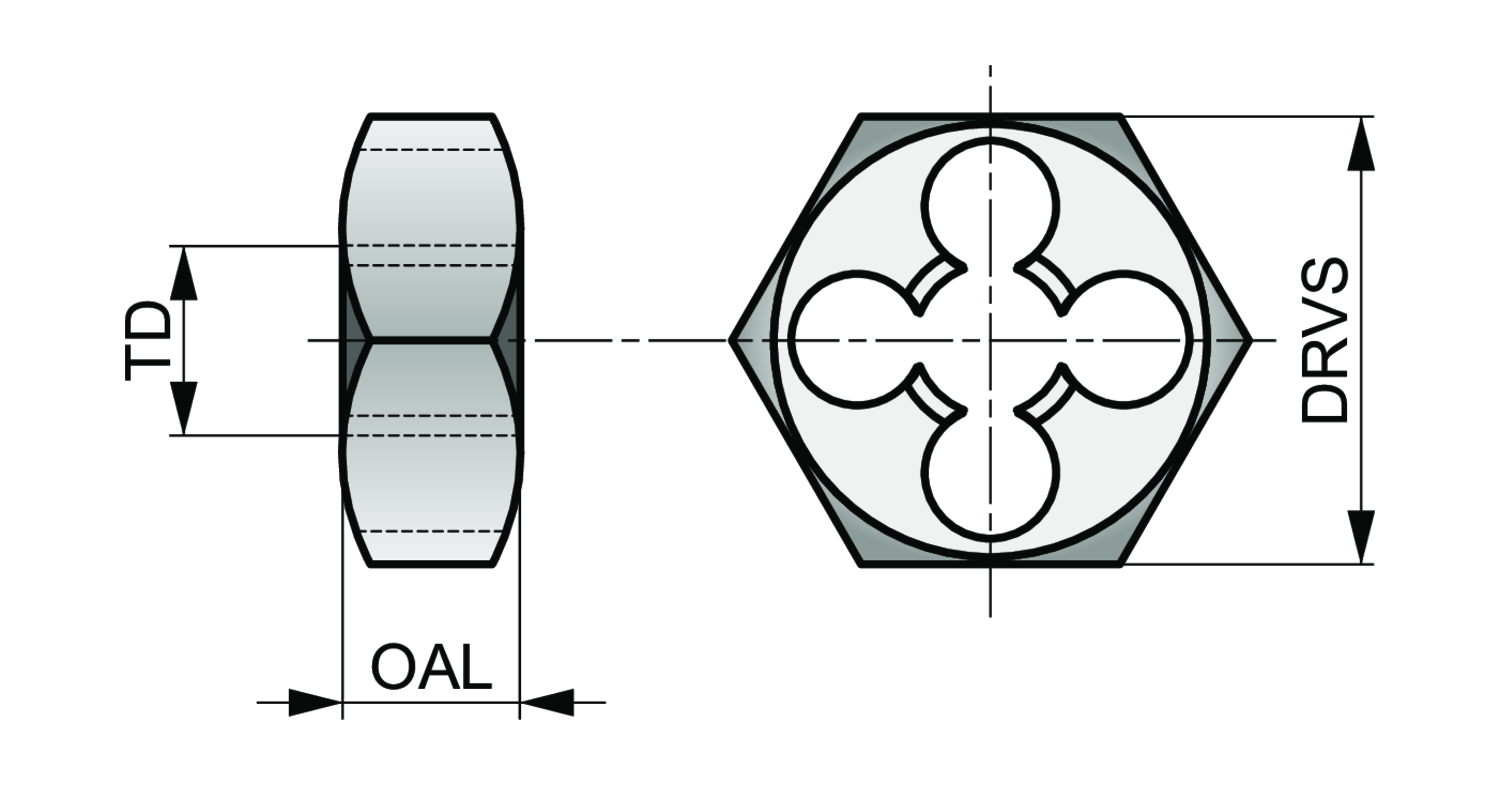

Line Drawing
