Bauer 30406165 BG20-11-C/NEMA56C/AV A/ 189N8626 BG HELICAL-GEARED MOTOR
MODEL 30406165
Contact supplier for technical support on: 800-626-2120
$805.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Helical gear
Type : BG20-11-C/NEMA56C/AV
Design power P1 : 2,05 kW
Design speed of the high-speed
shaft n1 : 1800 rpm
Design speed of the low-speed
shaft n2 : 123 rpm
Design torque at the high-speed
shaft M1 at sf = 1,0 : 11,0 Nm
Design torque at the low-speed
shaft M2 at sf = 1,0 : 172 Nm
max permissible input speed n1
with reduced torque : 3600 rpm

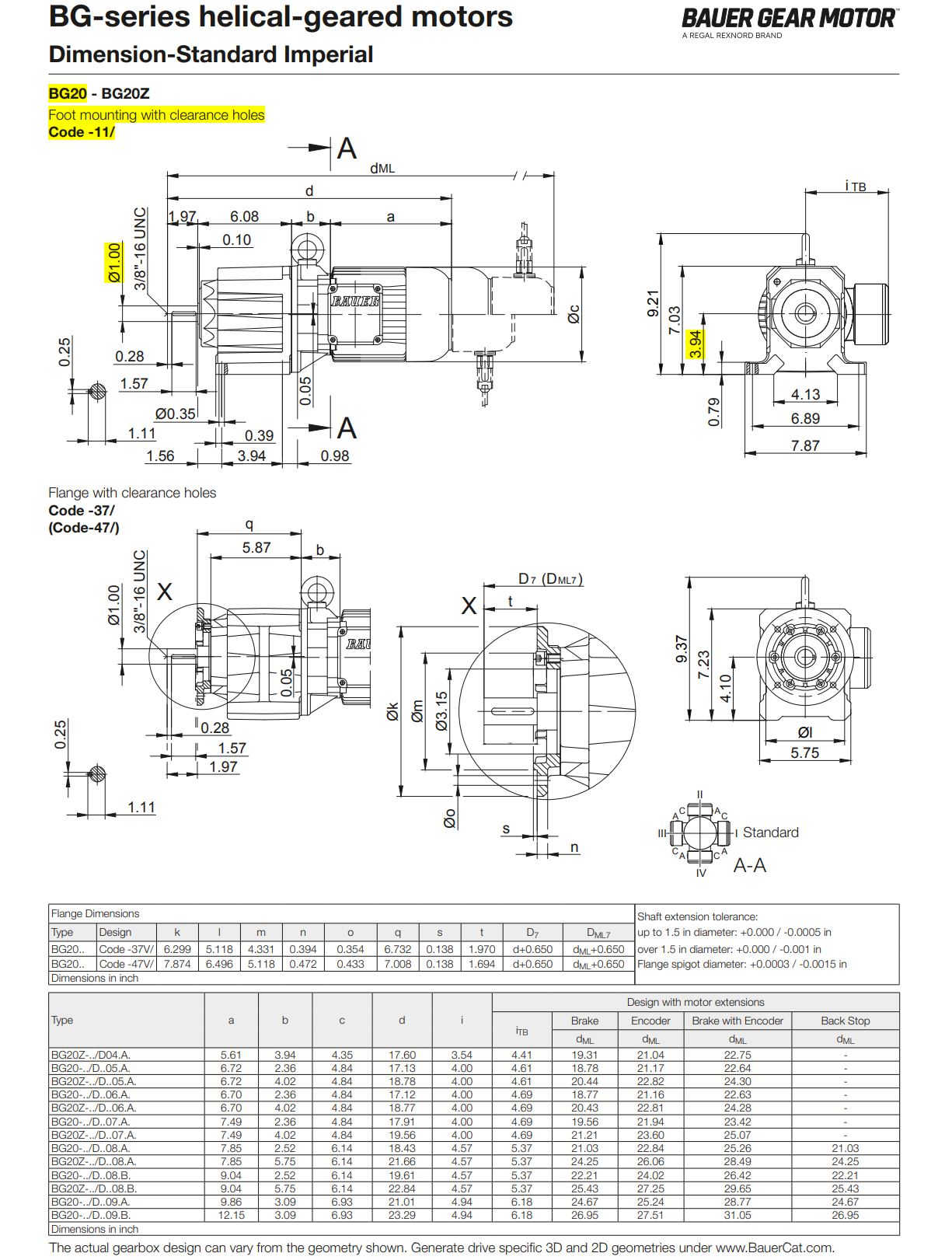

Mounting : B3 Dimensional drawing : B.20-B.20Z-..-C-NEMA
Corrosion protection : Standard Catalogue : -
Painting : RAL 7031 net weight per unit : approximately 7,9 kg
ambient temperature °C : -20 - +40
Gear design:
Type : BG20 2 -staged Helical gear
Design code 11 : foot with clearance hole on side bottom
: solid output shaft on gear side front (d: 1 inch)
Total gear reduction i : 14,67
Oil-type/-volume (l) : CLP 220 / 0,6
