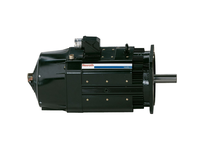

Bosch Rexroth R911335004 MAD130D-0150-SA-M2-BK5-35-N1
MODEL R911335004
$16,189.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Bolt circle [mm]
300
Brake type
Electrically clamping, 30 Nm
Cooling type
Axial fan, blowing
Electrical connection
Connector B-side
Encoder design
Multiturn absolute encoder, EnDat2.1, 2048 increments
Flange size [mm]
262
Maximum current [A]
123
Maximum speed [rpm]
7500.0
Maximum torque [Nm]
374.6
Motor type
With holding brake
Rated power [kW]
24.3
Rated speed [min⁻¹]
1500
Rated torque [Nm]
155.0
Rotor inertia (with brake) value [kg/m²]
0.164
Shaft diameter [mm]
42
Shaft length [mm]
110
Spigot [mm]
250
The high power density predestines the MAD motor series for applications in machine tools and printing machines as well as in metal forming. Fine-resolution encoder systems in single-turn or multi-turn design as well as outstanding radial runout ensure maximum machining precision. In addition to options such as keyway and holding brake, these motors are also available with special bearings for high-speed applications or for applications with increased radial loads. The motor degree of protection IP65 includes the blower motor and thus enables use even in rough industrial environments. The service-friendly motor design even allows easy fan replacement while the motor is running – particularly interesting in the printing industry.
