FAG 222S.307 Split Spherical Roller Bearings
MODEL 222S.307
$2,478.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bore Type
Straight
Cage
Outer Ring Guided
Cage Material
Polyamide
Closure Type
Open
Fillet Radius
2.10 mm
Finish Coating
Uncoated
I.D.
3/5 in
Internal Clearance
C0
Lubrication Hole Type
Lubrication Groove & Hole
Max Rpm
1700 rpm
O.D.
180 mm
Outer Ring Type
Split
Overall Width
76 mm
Precision Rating
Not Rated
Product Type
Spherical Roller Bearings
Series
222S

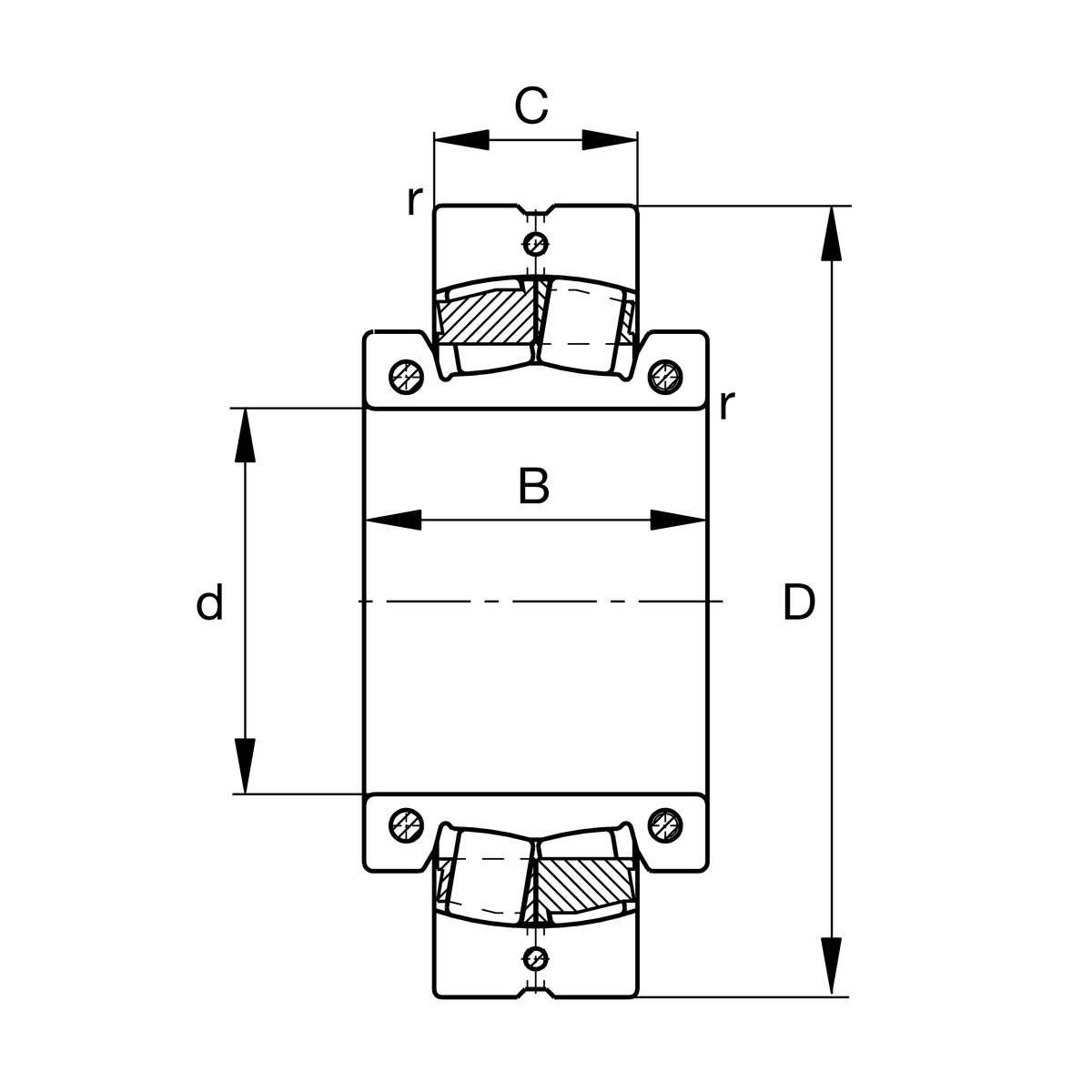

Specifications
| d | 87, 313 mm | |
| d | 3 7/16 inch | |
| D | 180 mm | |
| C | 46 mm |
| B | 76 mm | |
| r min | 2, 1 mm |
| Mass | 6, 86 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 285000 N | C r |
| e | 0, 23 | |
| Y 1 | 2, 9 | |
| Y 2 | 4, 31 | |
| Basic static load rating, radial | 360000 N | C 0r |
| Y 0 | 2, 83 | |
| Limiting speed | 1820 1/min | n G |
| Fatigue limit load, radial | 32500 N | C ur |
| Permissible axial load, for inner ring without axial abutment | 7600 N | F a max |
| Tightening torque per clamping screw | 14 Nm | M i |
| Tightening torque per clamping screw | 14 Nm | M a |
| Designation, spherical roller bearing, unsplit | 22220K | |
| Designation, adapter sleeve | H320. 307 | |
| Designation, adapter sleeve, US design | SNW20. 307 | |
| Designation, plummer block housing | SNV180 | |
| Designation, plummer block housing, US design | SAF520 |
