FAG 230S.1000 Split Spherical Roller Bearings
MODEL 230S.1000
$33,824.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bore Type
Straight
Cage
Outer Ring Guided
Cage Material
Brass Cage
Closure Type
Open
Fillet Radius
4.00 mm
Finish Coating
Uncoated
I.D.
2/5 in
Internal Clearance
C0
Lubrication Hole Type
Lubrication Groove & Hole
Max Rpm
620 rpm
O.D.
420 mm
Outer Ring Type
Split
Overall Width
170 mm
Precision Rating
Not Rated
Product Type
Spherical Roller Bearings
Series
230

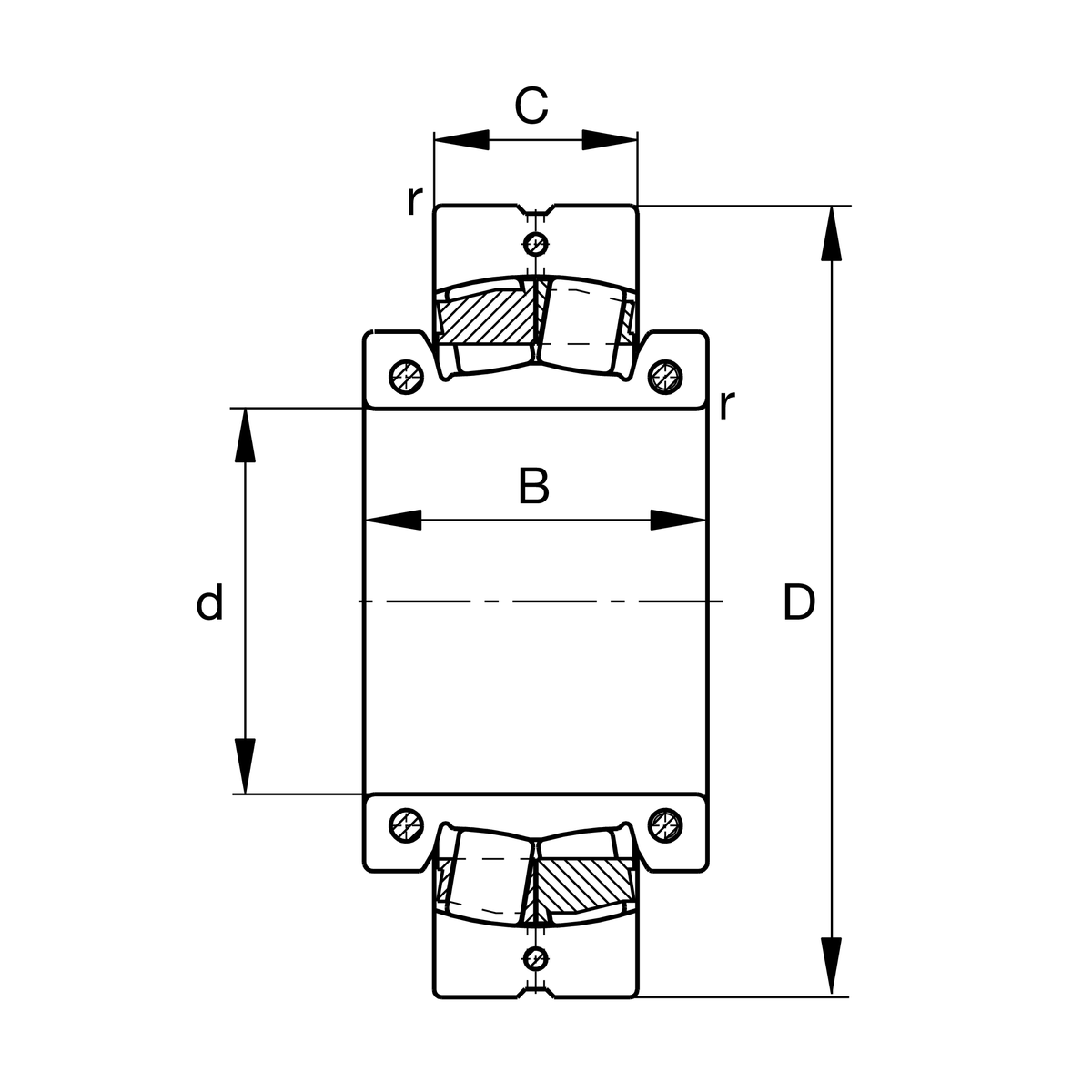

Specifications
| d | 254 mm | |
| d | 10 inch | |
| D | 420 mm | |
| C | 106 mm |
| B | 170 mm | |
| r min | 4 mm |
| Mass | 71, 2 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 1460000 N | C r |
| e | 0, 23 | |
| Y 1 | 2, 95 | |
| Y 2 | 4, 4 | |
| Basic static load rating, radial | 2450000 N | C 0r |
| Y 0 | 2, 89 | |
| Limiting speed | 620 1/min | n G |
| Fatigue limit load, radial | 200000 N | C ur |
| Permissible axial load, for inner ring without axial abutment | 32000 N | F a max |
| Tightening torque per clamping screw | 120 Nm | M i |
| Tightening torque per clamping screw | 35 Nm | M a |
| Designation, spherical roller bearing, unsplit | 23056K | |
| Designation, adapter sleeve | H3056. 1000 | |
| Designation, adapter sleeve, US design | SNP3056. 1000 | |
| Designation, plummer block housing, US design | SAF056K/10 |
