Image for Illustration purposes only. Actual product may vary
FAG 23220E1K.TVPB Double Row Spherical Roller Bearing
MODEL 23220E1K.TVPB
$679.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Cage
Inner Ring Guided
I.D.
3 8/9 in

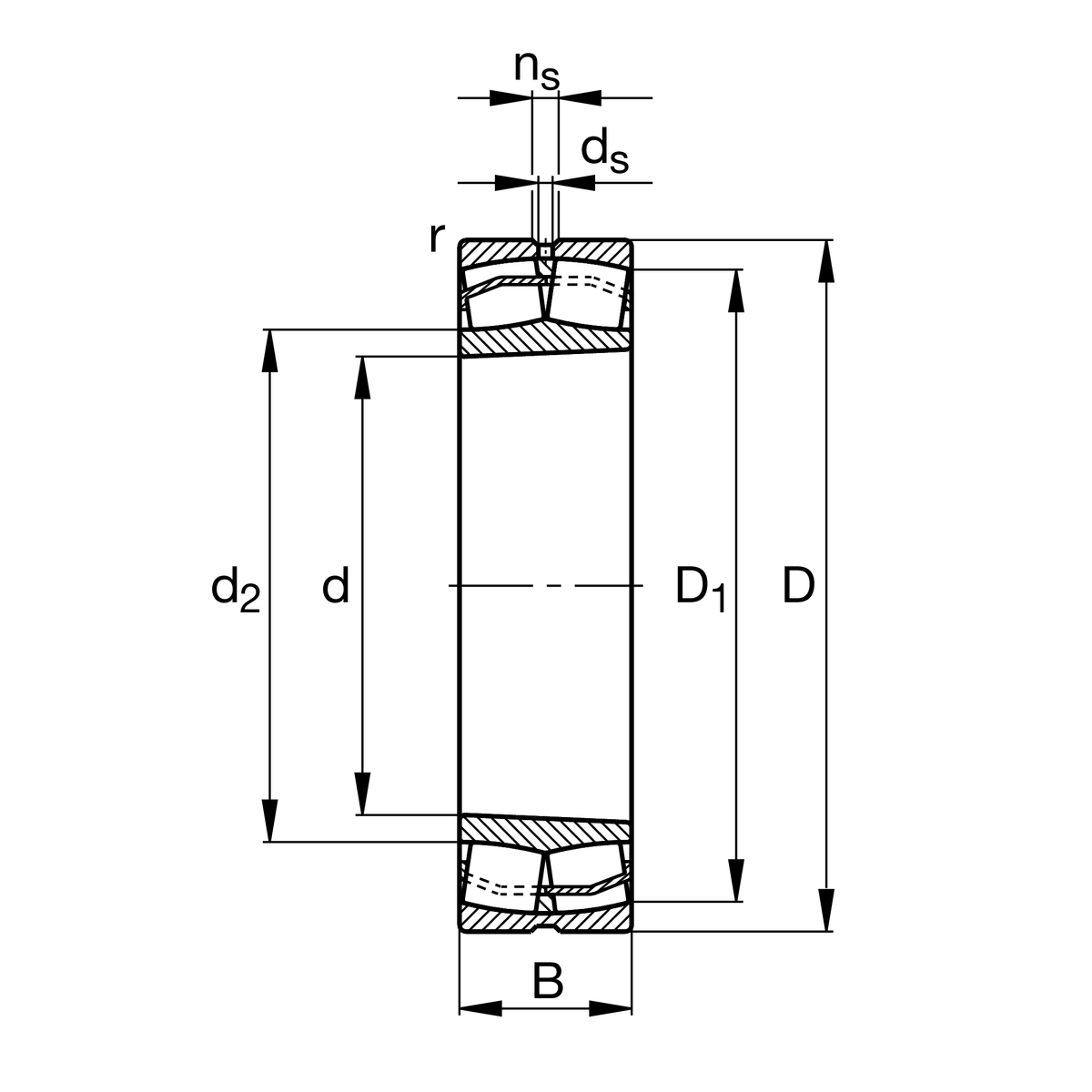

Specifications
| d | 100 mm | |
| D | 180 mm | |
| B | 60, 3 mm |
| D 1 | 156, 7 mm | |
| D a max | 168 mm | |
| d 2 | 116, 7 mm | |
| d a min | 112 mm | |
| d s | 4, 8 mm | |
| n s | 9, 5 mm | |
| r a max | 2, 1 mm | |
| r min | 2, 1 mm |
| Mass | 6, 1 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 560000 N | C r |
| e | 0, 31 | |
| Y 1 | 2, 15 | |
| Y 2 | 3, 2 | |
| Basic static load rating, radial | 660000 N | C 0r |
| Y 0 | 2, 1 | |
| Limiting speed | 3750 1/min | n G |
| Reference speed | 2460 1/min | n B |
| Fatigue limit load, radial | 60000 N | C ur |
