FAG 7602020TVP Single Direction Thrust Ball Bearing
MODEL 7602020TVP
$336.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bearing Material
52100 Steel
Bearing Type
Angular Contact Bearings
Bore Type
Straight
Cage Material
Polyamide
Closure Type
Open
Contact Angle
60°
Fillet Radius
1 mm
I.D.
4/5 in
Max Rpm
9200 rpm
O.D.
47 mm
Overall Width
14 mm
Product Type
Angular Contact Bearings
Radial Dynamic Load Capacity
19100 N
Radial Static Load Capacity
38000 N
Row Type Fill Slot
Single-Row Non-Fill Slot
Series
7602
Snap Ring Included
Without Snap Ring

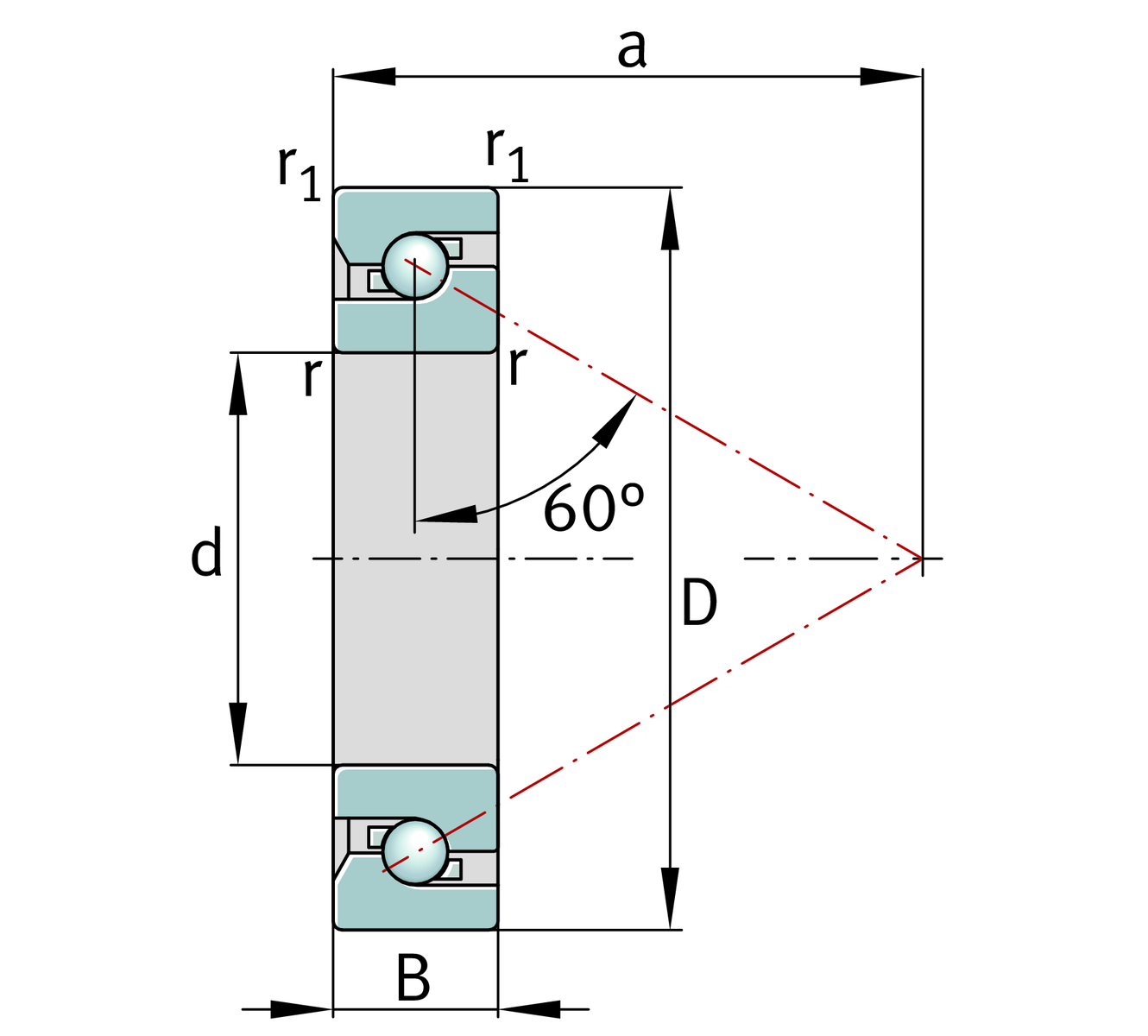

Specifications
| Tolerance: -0, 005 | 20 mm | d |
|---|---|---|
| Tolerance: -0, 006 | 47 mm | D |
| Tolerance: -0, 12 | 14 mm | B |
| Contact angle | 60 ° | |
|---|---|---|
| a | 36 mm | |
| Tolerance: H12 | 39, 5 mm | D a |
| Tolerance: h12 | 27, 5 mm | d a |
| r 1 min | 1 mm | |
| r min | 1 mm |
| Mass | 0, 139 kg | m |
|---|---|---|
| Basic dynamic load rating, axial | 19100 N | C a |
| Basic static load rating, axial | 38000 N | C 0a |
| Limiting speed for grease lubrication | 5000 1/min | n G Fett |
| Bearing frictional torqueValid for individual bearing with stated preload force, bearing lightly oiled. | 0, 06 Nm | M RL |
| Axial rigidityValid for matched pair of bearings in O or X arrangement | 703 N/µm | c aL |
| Axial runoutThe axial runout data for screw drive bearing arrangements are based on the rotating inner ring. | 2 µm | |
| Designation of recommended INA locknut | ZM20 | |
| Designation of recommended INA locknut | AM20 | |
| Tightening torqueOnly valid in conjunction with INA precision locknuts | 18 Nm | M A |
| Axial preload force | 8490 N |
