FAG 7603025TVP Single Direction Thrust Ball Bearing
MODEL 7603025TVP
$568.66 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bore Type
Straight
I.D.
1 in
Product Type
Angular Contact Bearings
Snap Ring Included
Without Snap Ring

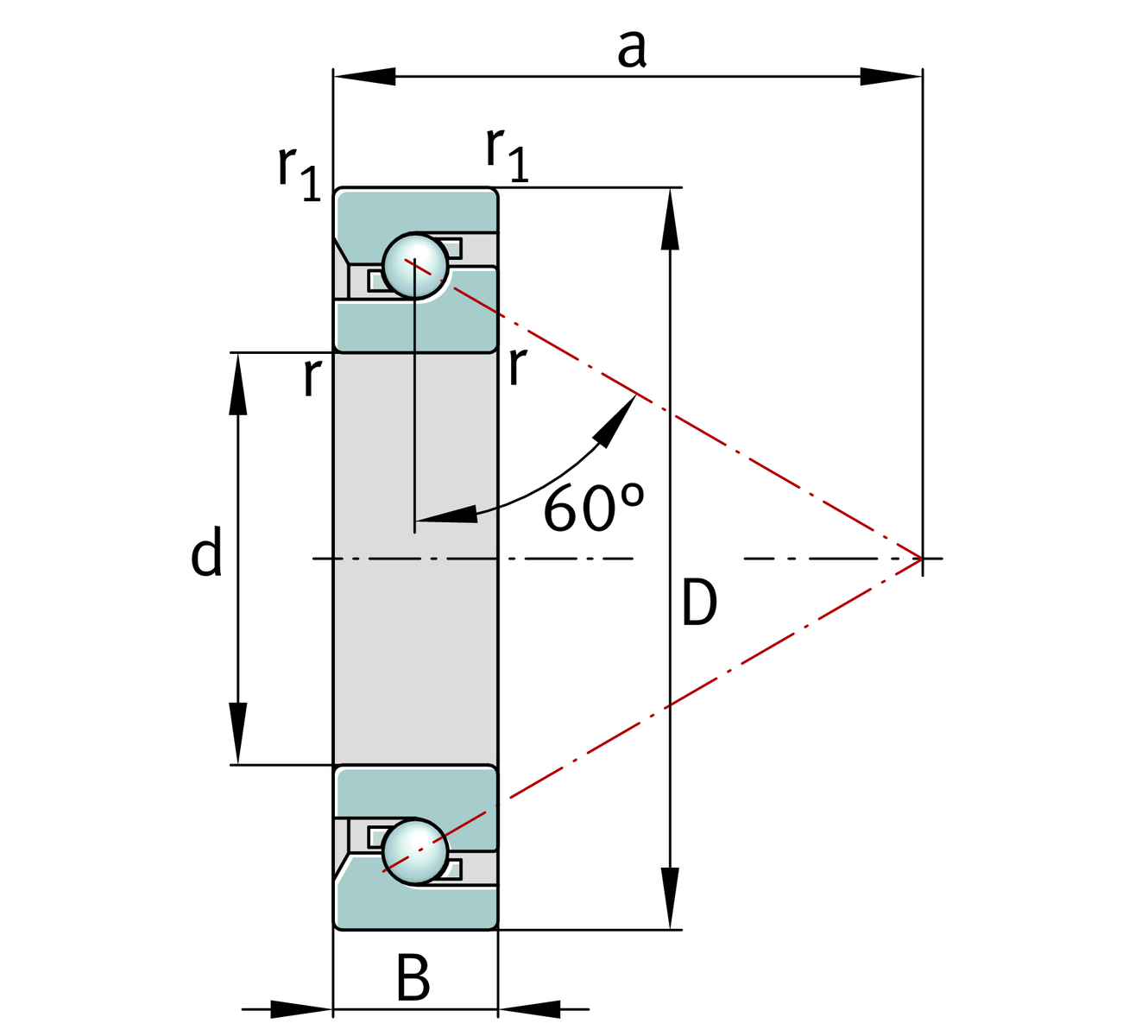

Specifications
| Tolerance: -0, 005 | 25 mm | d |
|---|---|---|
| Tolerance: -0, 007 | 62 mm | D |
| Tolerance: -0, 12 | 17 mm | B |
| Contact angle | 60 ° | |
|---|---|---|
| a | 47, 5 mm | |
| Tolerance: H12 | 52 mm | D a |
| Tolerance: h12 | 38 mm | d a |
| r 1 min | 1, 1 mm | |
| r min | 1, 1 mm |
| Mass | 0, 275 kg | m |
|---|---|---|
| Basic dynamic load rating, axial | 29500 N | C a |
| Basic static load rating, axial | 68000 N | C 0a |
| Limiting speed for grease lubrication | 3800 1/min | n G Fett |
| Bearing frictional torqueValid for individual bearing with stated preload force, bearing lightly oiled. | 0, 085 Nm | M RL |
| Axial rigidityValid for matched pair of bearings in O or X arrangement | 917 N/µm | c aL |
| Axial runoutThe axial runout data for screw drive bearing arrangements are based on the rotating inner ring. | 2 µm | |
| Designation of recommended INA locknut | ZM25 | |
| Designation of recommended INA locknut | AM25 | |
| Tightening torqueOnly valid in conjunction with INA precision locknuts | 40 Nm | M A |
| Axial preload force | 14480 N |
