FAG 11206-TVH Self-Aligning Ball Bearings(Agricultural)
MODEL 11206-TVH
$151.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bearing Type
Self-Aligning Ball Bearings
Bore Type
Straight
Cage Material
Polyamide
Closure Type
Open
Fillet Radius
1 mm
Finish Coating
Uncoated
I.D.
1.378
Inner Ring Width
48 mm
Internal Clearance
C0
Max Rpm
8500 rpm
O.D.
2.835
Operating Temperature Range
Maximum of +120°C
Overall Width
48 mm
Precision Rating
Not Rated
Product Type
Self-Aligning Ball Bearings
Radial Dynamic Load Capacity
15900 N
Radial Static Load Capacity
4600 N
Seal Type
Open
Series
112
Snap Ring Included
Without Snap Ring
Standards Met
DIN 630

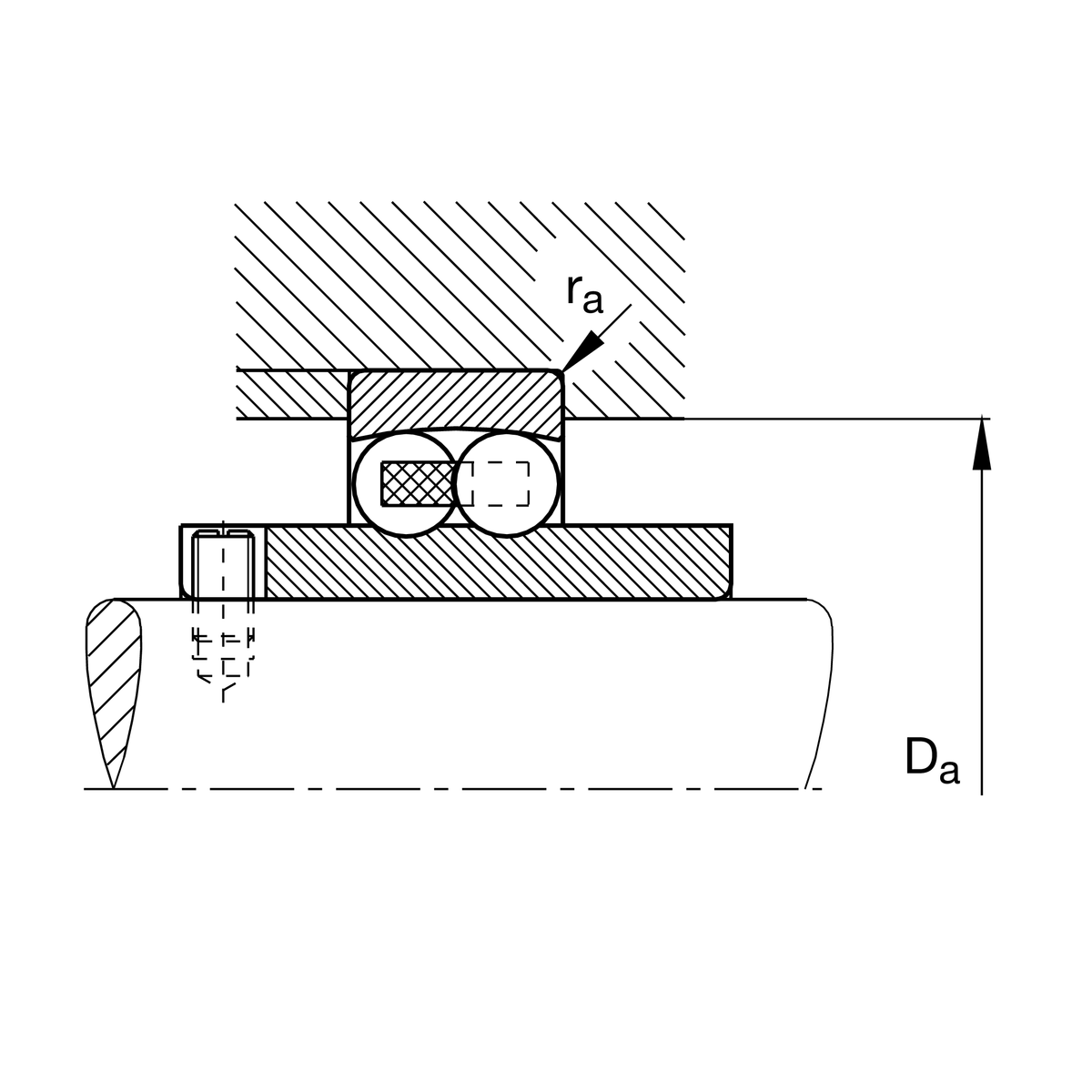

Specifications
| d | 30 mm | |
| D | 62 mm | |
| B i | 48 mm |
| Groove width | 7 mm | |
|---|---|---|
| Groove depth | 9 mm | |
| B | 16 mm | |
| D 1 | 51, 9 mm | |
| D a max | 56, 4 mm | |
| d 1 | 40, 1 mm | |
| r a max | 1 mm | |
| r min | 1 mm |
| Mass | 0, 364 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 15900 N | C r |
| e | 0, 25 | |
| Y 1 | 2, 53 | |
| Y 2 | 3, 91 | |
| Basic static load rating, radial | 4600 N | C 0r |
| Y 0 | 2, 65 | |
| Limiting speed | 8500 1/min | n G |
| Fatigue limit load, radial | 285 N | C ur |
