FAG JK0S080A Inch Dimension Tapered Roller Beari
MODEL JK0S080A
$300.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Assembly Type
Cone & Cup
Cage Material
Plastic
Closure Type
Single Seal
Finish Coating
Uncoated
Flange Type
Non-Flanged Cup
I.D.
80 mm
Max Rpm
2200 rpm
O.D.
125 mm
Operating Temperature Range
-30 to +110°C
Overall Width
30 mm
Product Type
Tapered Roller Bearing Full Assemblies
Series
JK0S

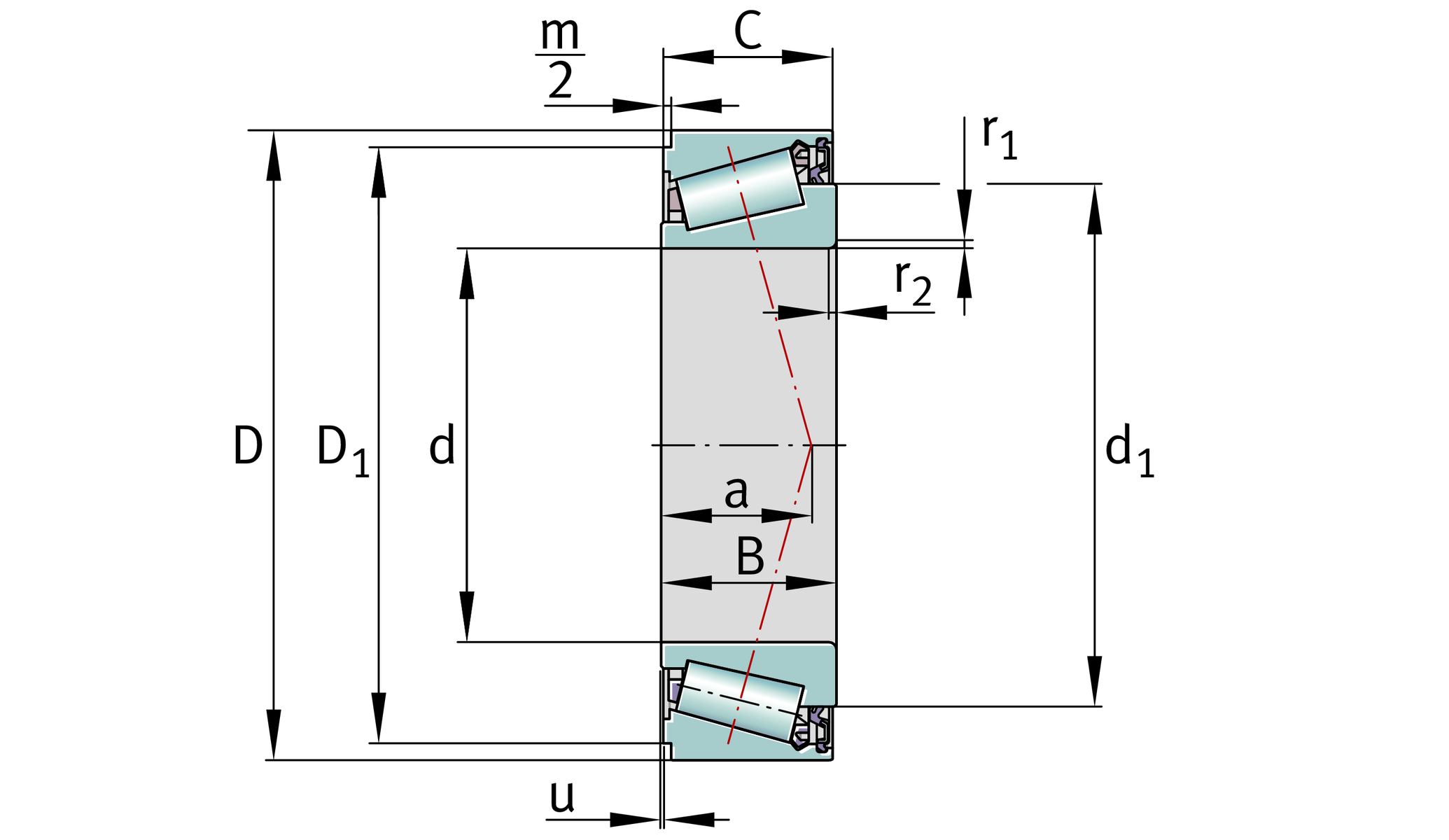

Specifications
| d | 80 mm | |
| D | 125 mm | |
| B | 30 mm |
| ≈ | 28, 3 mm | a |
|---|---|---|
| C | 29, 5 mm | |
| D 1 | 119, 8 mm | |
| Nominal dimension of slot | 127, 3 mm | D n |
| ≈ | 104, 2 mm | d 1 |
| d a max | 89 mm | |
| d b min | 87 mm | |
| m/2 | 1, 25 mm | |
| r a max | 1, 5 mm | |
| r1, r2 min | 1, 5 mm | |
| u | 0, 03 mm | |
| Deviation Δ Dn | +0, 25 mm | Δ Dn |
| Deviation Δ u | +0, 05 mm | Δ u |
| ≈ Mass, ungreased | 1, 32 kg | m |
|---|---|---|
| Designation, snap ring | BR125 | |
| Basic dynamic load rating, radial | 137000 N | C r |
| Basic static load rating, radial | 211000 N | C 0r |
| e | 0, 42 | |
| Y | 1, 42 | |
| Y 0 | 0, 78 | |
| Fatigue limit load, radial | 26000 N | C ur |
| Limiting speed for grease lubrication | 1600 1/min | n G Fett |
| Load carrying capacity of snap ring connectionWith abutment against a sharp edge | 40200 N | F BR |
| Max. axial assembly clamping force of bearing pair | 27400 N |
