FAG KM20 Pillow Block Accessories
MODEL KM20
$174.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bearing Type
Bearing Lock Nuts
Face Diameter
120 mm
I.D.
4.134
Lock Nut Type
For Lock Washer
Lock Washer Locking Device Part Num
MB20
Material
Steel
O.D.
5.512
Overall Width
18 mm
Product Type
Bearing Lock Nuts
Series
KM
Thread Size
M100x2 mm, M100x2 mm

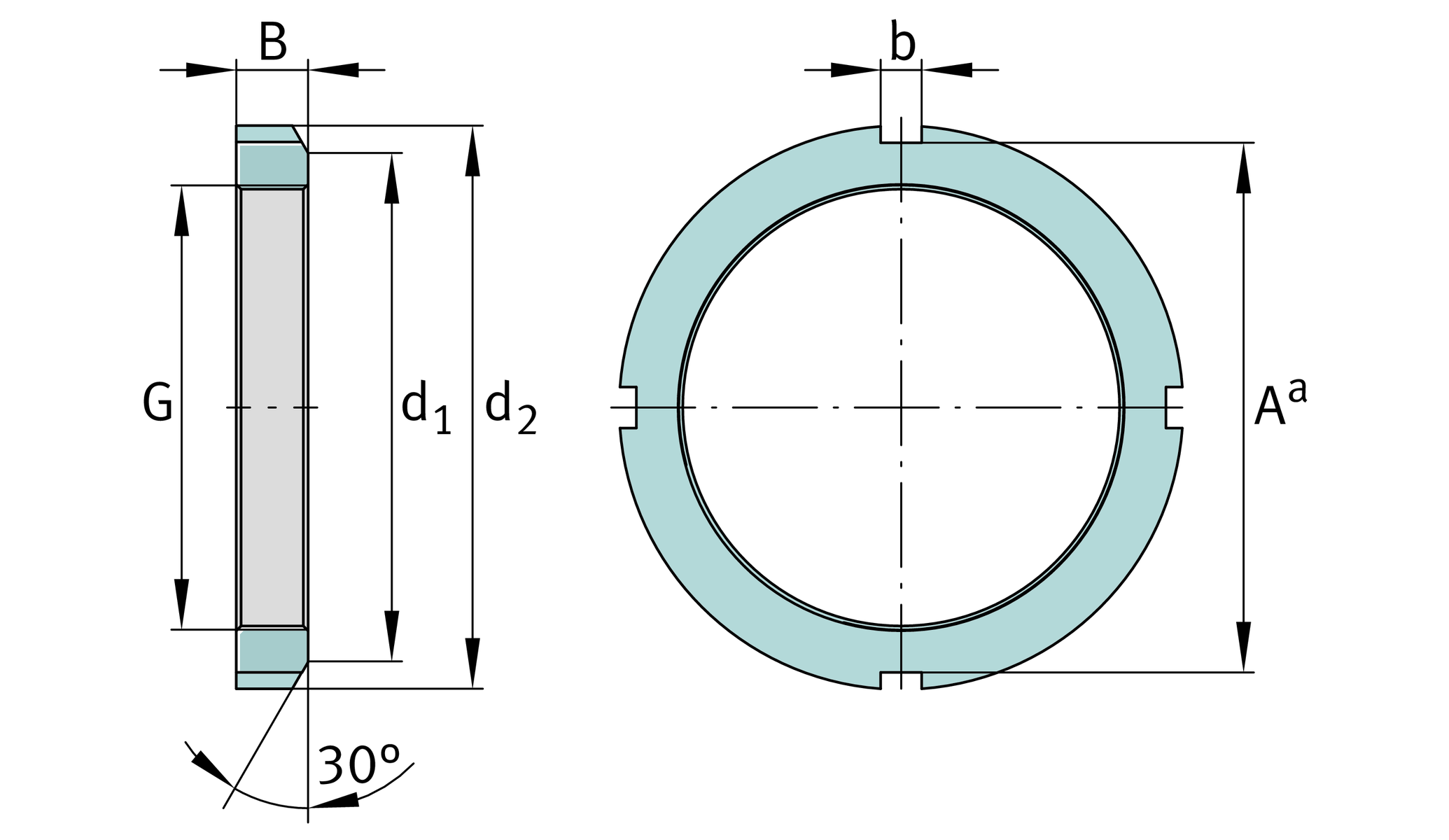

Specifications
| Thread | M100X2 | d 2G |
|---|---|---|
| D m | 130 mm | |
| b 1 | 18 mm |
| Chamfer angle | 30 ° | |
|---|---|---|
| D a | 120 mm | |
| m | 10 mm | |
| n | 4 mm |
| Mass, nut | 0, 73 kg | m 1 |
|---|---|---|
| Designation, retainer | MB20 |
