MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
FAG NJ2230E.M1 Single Row Cylindrical Roller Bearing
MODEL NJ2230E.M1
$2,810.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Cage
Roller Guided
I.D.
5 8/9 in

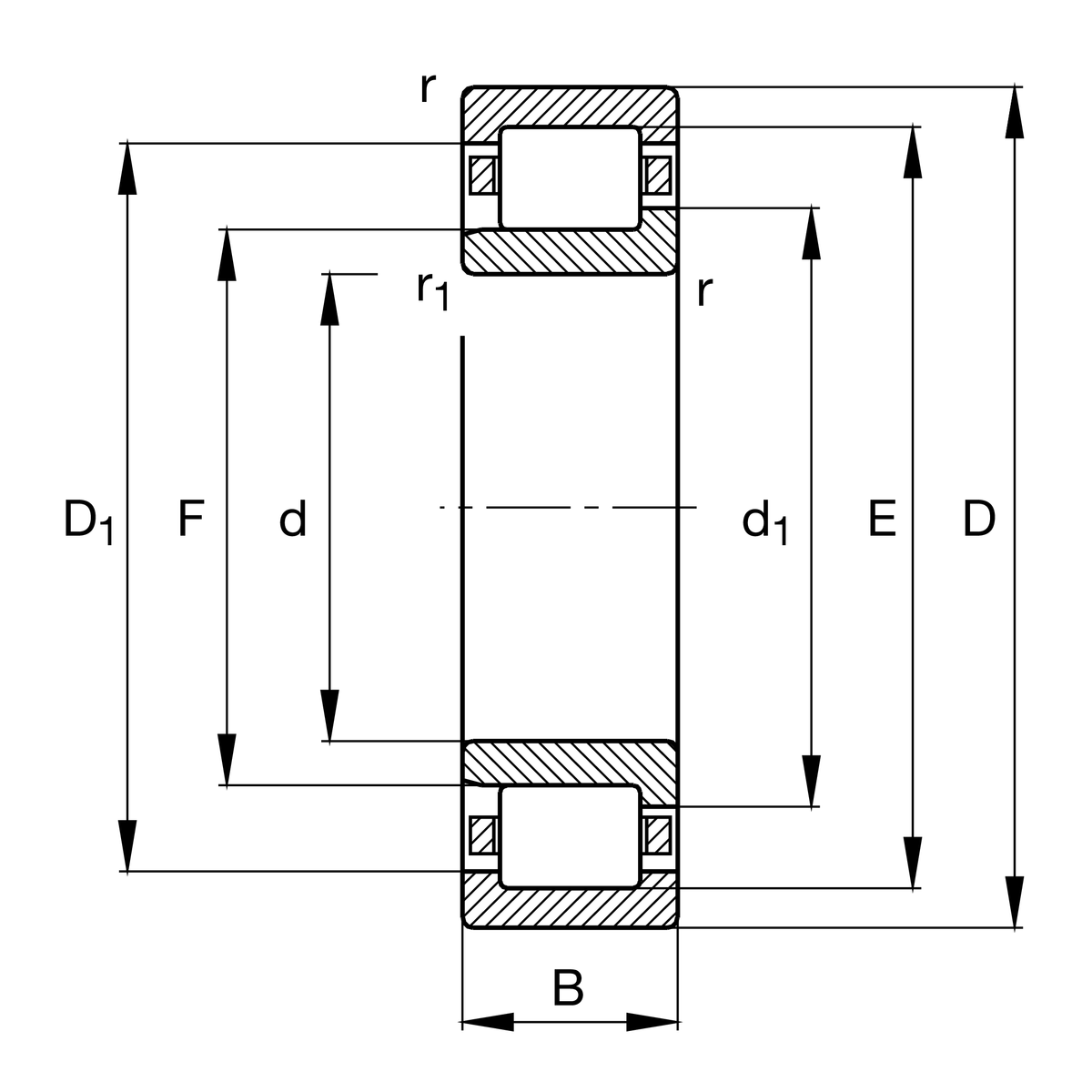

Specifications
| d | 150 mm | |
| D | 270 mm | |
| B | 73 mm |
| D 1 | 233, 2 mm | |
| D a max | 256 mm | |
| d 1 | 193, 1 mm | |
| d a max | 179 mm | |
| d a min | 164 mm | |
| d c min | 196 mm | |
| F | 182 mm | |
| r 1 min | 3 mm | |
| r a max | 2, 5 mm | |
| r min | 3 mm | |
| Axial displacement facility from central position | 7, 5 mm | s |
| Mass | 18, 9 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 780000 N | C r |
| Basic static load rating, radial | 970000 N | C 0r |
| Limiting speed | 3950 1/min | n G |
| Reference speed | 1870 1/min | n B |
| Fatigue limit load, radial | 152000 N | C ur |
