FAG NJ407 Single Row Cylindrical Roller Bearing
MODEL NJ407
$170.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable:No
Bore Type
Straight
Closure Type
Open
Fillet Radius
1.5 mm
Finish Coating
Uncoated
Flanges
(1) Inner Ring, (2) Outer Ring
I.D.
1.378
Internal Clearance
C0
Max Rpm
11800 rpm
Number Of Rows
1
O.D.
3.937
Operating Temperature Range
-30 to +150°C
Overall Width
25 mm
Precision Rating
Not Rated
Product Type
Cylindrical Roller Bearings
Ring Separation
Separable Outer Ring
Series
NJ4
Specifications

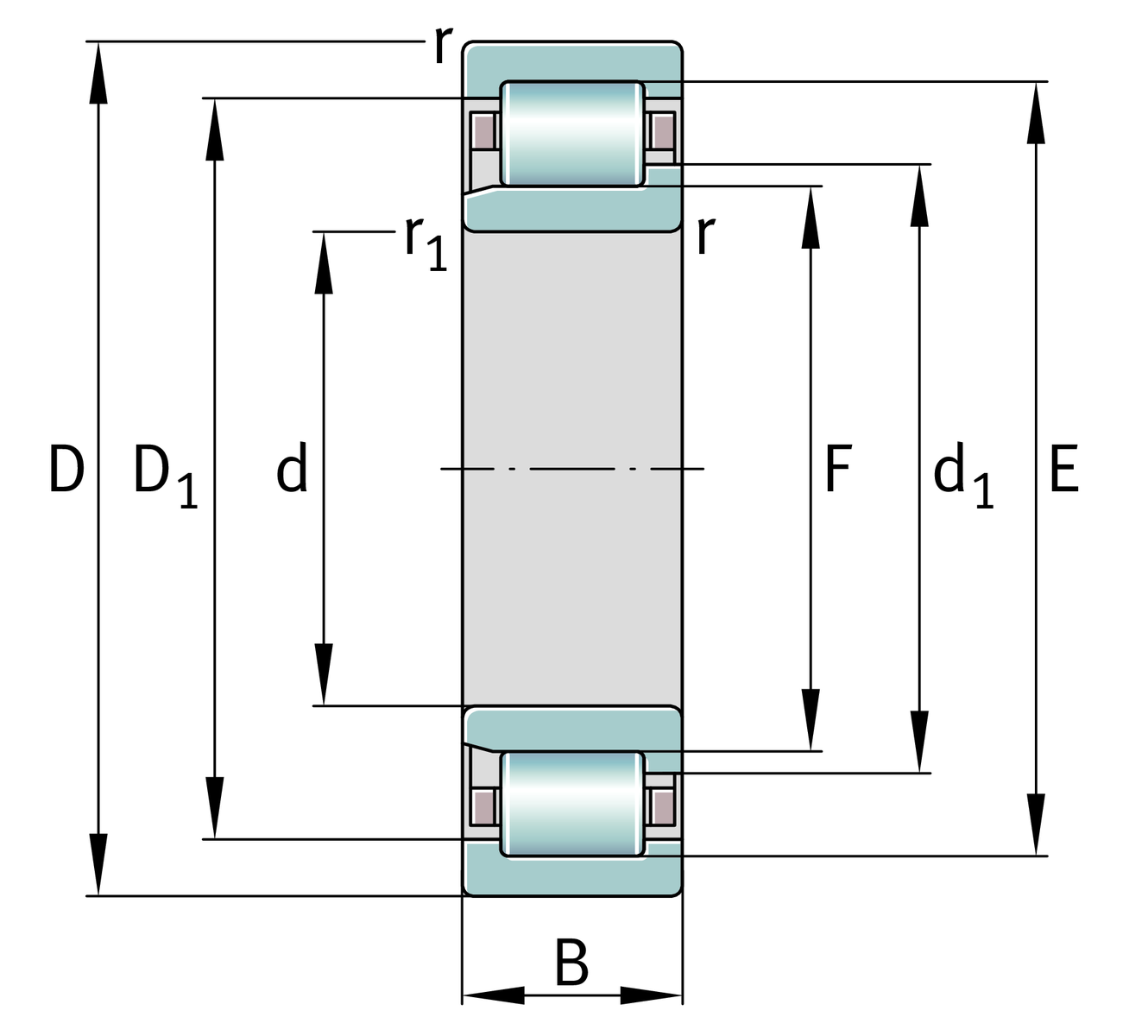

| d | 35 mm | |
| D | 100 mm | |
| B | 25 mm |
| D 1 | 78, 2 mm | |
| D a max | 89 mm | |
| d 1 | 58, 8 mm | |
| d a max | 52 mm | |
| d a min | 46 mm | |
| d c min | 61 mm | |
| F | 53 mm | |
| r 1 min | 1, 5 mm | |
| r a max | 1, 5 mm | |
| r min | 1, 5 mm | |
| Axial displacement facility from central position | 2, 6 mm | s |
| Mass | 1, 16 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 103000 N | C r |
| Basic static load rating, radial | 83000 N | C 0r |
| Limiting speed | 11800 1/min | n G |
| Reference speed | 7000 1/min | n B |
| Fatigue limit load, radial | 14300 N | C ur |
