#217710
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCFL 207 35MM
- Condition: NEW
- SKU: 217710
IPTCI Bearing UCFL 207 35MM 2-Bolt Flange Set Screw Lock Bore Dia. 35mm Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 2.9 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 2
$23.71 Each
Select Quantity
Before setting off to buy that mounted bearing, it is important to have the right technical specifications. The simplest way to get it right is using the technical person who runs the machine. The expert will help to specify the following details;
-
The right shaft securing method.
-
The performance specifications such as optimal speed.
-
The mounted bearing load and operating temperature.
-
The best housing material.
Additional Description
2-Bolt flange units with set screw lock.
- Standard duty
- Wide inner race bearing
- B-type or L3-type seals
- Available with high temp. bearing, see HUCFL

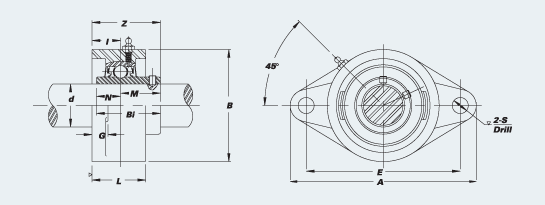

Unit Number: UCFL 207UCFL 207
| A | E | I | G | L | S | B | Z | Bi | N | M | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 11/32 | 5 1/8 | 3/4 | 9/16 | 1 11/32 | 33/64 | 3 17/32 | 1 3/4 | 1.6890 | 0.6890 | 1.0000 | 7/16 |
