#217950
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: NANFL 205 16 L3
- Condition: NEW
- SKU: 217950
IPTCI Bearing NANFL 205 16 L3 2-Bolt Flange Eccentric Locking Collar Bore Dia. 1" Wide Inner Race Insert Triple Lip Seal
View additional description- Typically ships in: 1 day
- Weight: 2.0 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 2
$19.80 Each
Select Quantity
Nov. 4, 2018
To make your mounted bearing deliver optimal performance, it is important to understand how they work in your system. The following are the main secrets of mounted bearings.
Read MoreAdditional Description
2-Bolt flange units with eccentric locking collar.
- Standard duty
- Cast iron housing
- Wide inner race bearing
- B-type or L3-type seals

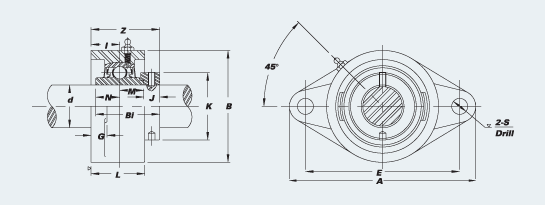

Unit Number: NANFL 205-16NANFL 205-16
| A | E | I | G | L | S | B | Z | Bi | N | M | J | K | Bolt Used |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 1/8 | 3 57/64 | 25/32 | 1/2 | 1 7/32 | 15/32 | 2 11/16 | 1 27/32 | 1.7441 | 0.6850 | 0.6850 | 0.3740 | 1.5000 | 3/8 |
