#218259
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCHA 205 16
- Condition: NEW
- SKU: 218259
IPTCI Bearing UCHA 205 16 Hanger Unit Set Screw Lock Bore Dia. 1" Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 1.9 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 2
$17.01 Each
Select Quantity
Additional Description
Hanger units with set screw lock.
- Standard duty
- Cast iron housing
- Wide inner race bearing
- Available with eccentriclocking collar bearing
- B-type seals
- L3-type seals available in some sizes

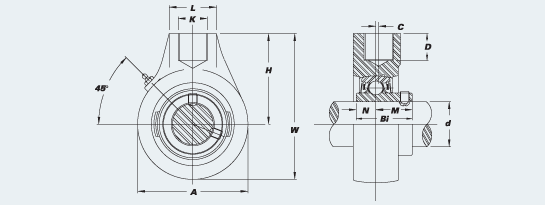

Unit Number: UCHA 205-16
| A | W | C | H | L | D | K | Bi | N | M |
|---|---|---|---|---|---|---|---|---|---|
| 3 1/16 | 4 1/16 | 0 | 2 33/64 | 1 9/16 | 3/4 | PF3/4 -14 | 1.3386 | 0.5630 | 0.7756 |
