#217394
Image for Illustration purposes only. Actual product may vary
- Brand: IPTCI Bearing
- Model: UCPA 204 20MM
- Condition: NEW
- SKU: 217394
IPTCI Bearing UCPA 204 20MM Tapped Base Pillow Block Set Screw Lock Bore Dia. 20mm Wide Inner Race Insert
View additional description- Typically ships in: 1 day
- Weight: 1.4 lb
- Contact supplier for technical support on: 952-224-7030
- MOQ: 3
$15.66 Each
Select Quantity
Additional Description
Pillow blocks with set screw lock.
- Standard duty
- Cast iron housing
- Wide inner race bearing
- B-type seals
- L3-type seals availablein some sizes
- Available with high temp. bearing, see HUCPA
Unit Number: UCPA 204UCPA 204

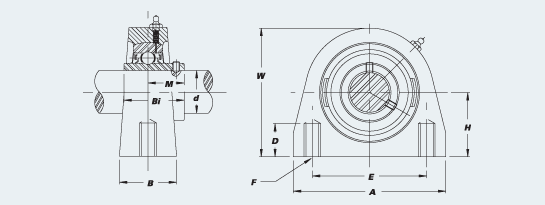

| H | A | E | B | W | F-Tapped Holes | D-Min Tap Depth | M | Bi |
|---|---|---|---|---|---|---|---|---|
| 1 5/16 | 2 7/8 | 2 | 1 1/2 | 2 9/16 | 3/8- 16 UNC | 1/2 | 0.7205 | 1.2205 |
