Pramet DNMG 441L-SI:T9335 8014991 Turning Insert - Negative
MODEL 8014991
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$13.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
SI
Coating
T9335
Coating process
MT-CVD
Coating property (CTP)
1
Corner radius - inch (RE)
0.016
Corner radius - millimeter (RE)
0.4
Cutting edge length - inch (L)
0.61
Cutting edge length - millimeter (L)
15.5
Fixing hole diameter - inch (D1)
0.203
Fixing hole diameter - millimeter (D1)
5.16
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
D - rhombic 55° included angle
Insert thickness - inch (S)
0.25
Insert thickness - millimeter (S)
6.35

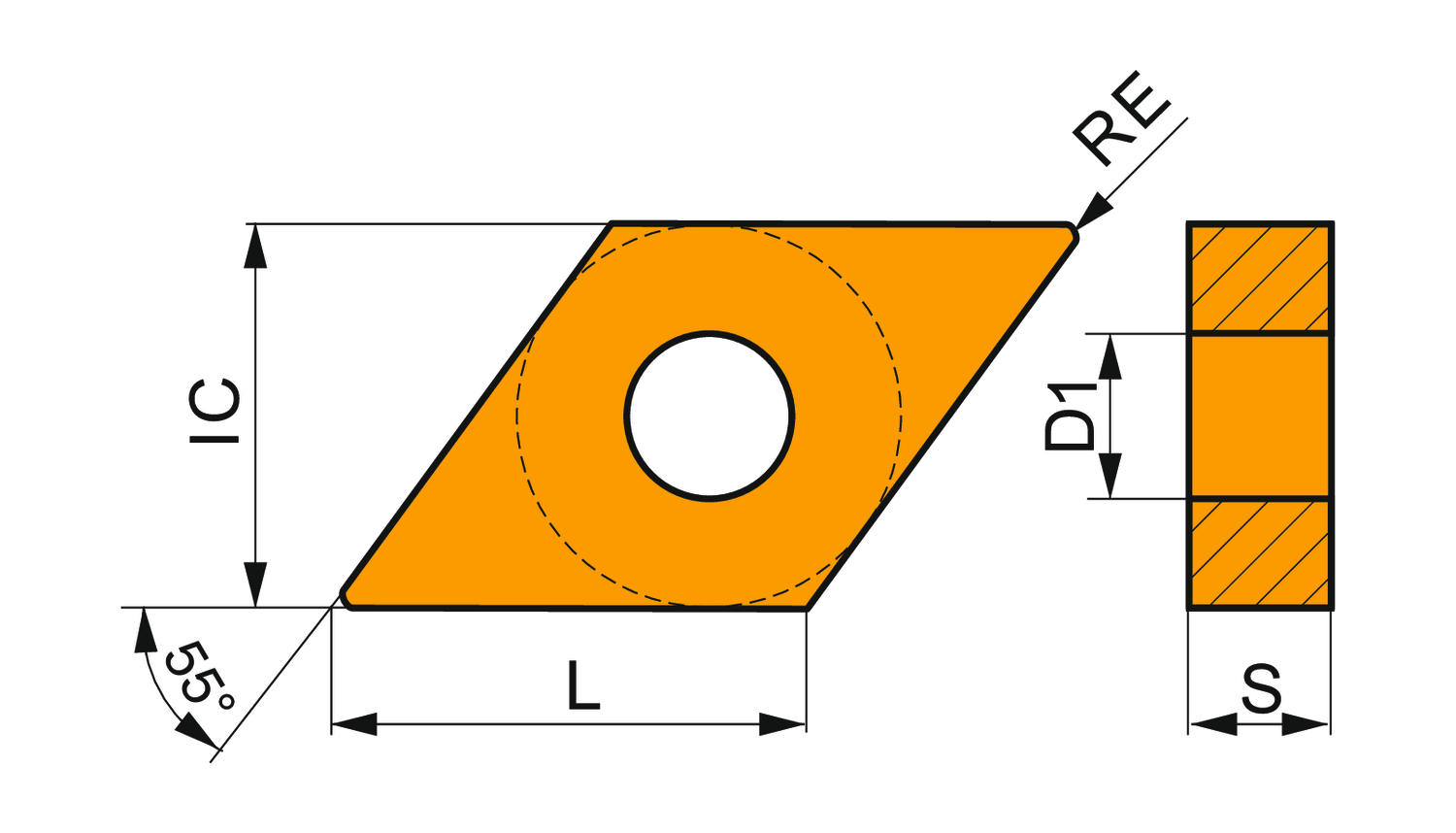

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SI with rounded cutting edges, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P20-P45 and M15-M40, for medium to heavy machining of steels and stainless-steels with a left handed turning tool
