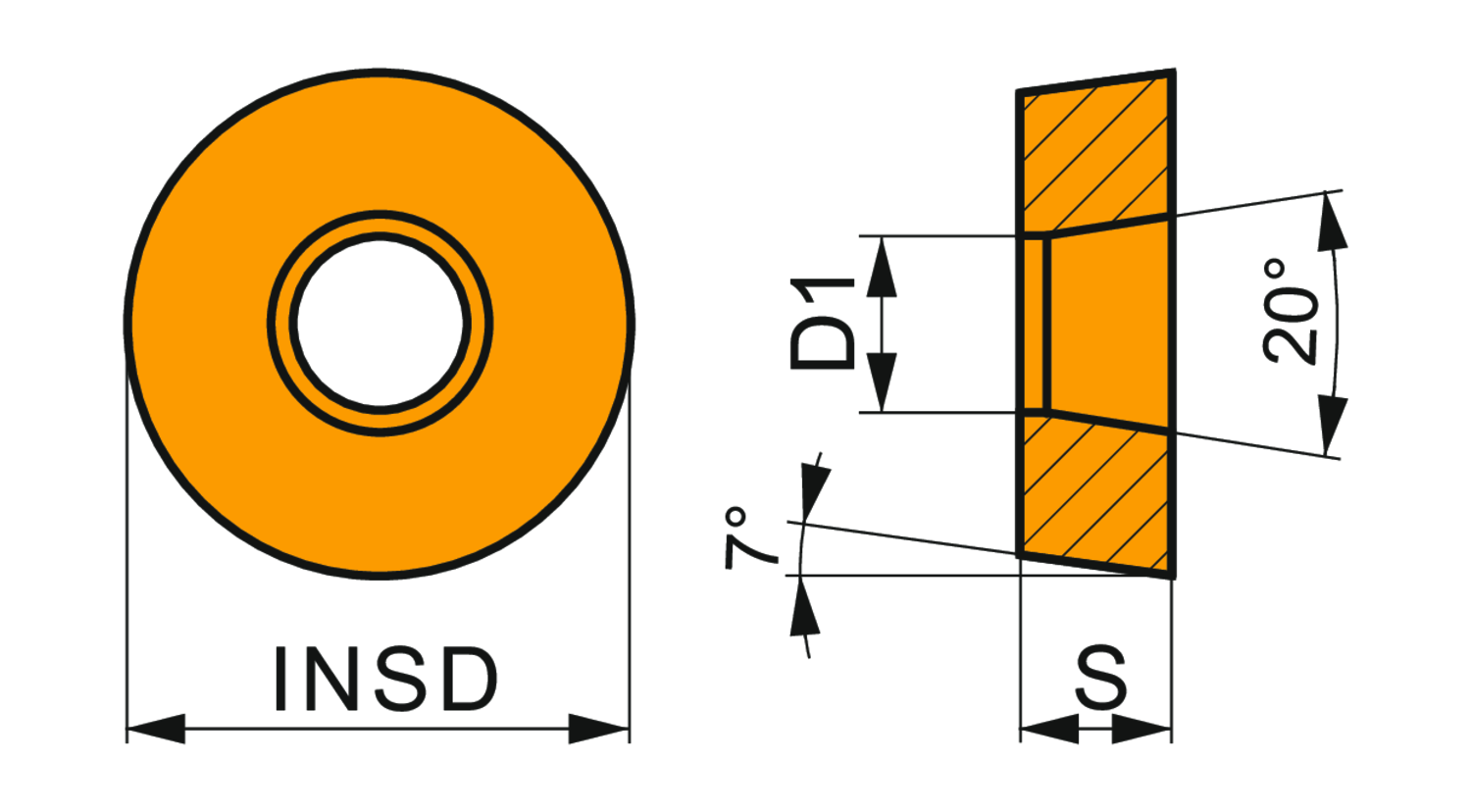

Image for Illustration purposes only. Actual product may vary
Pramet RCMX 2507MO-RF1:T9335 6754923 Turning Insert - Positive
MODEL 6754923
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$35.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
RF1
Coating
T9335
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended
Depth of cut maximum - inch (APMX)
0.276
Depth of cut maximum - millimeter (APMX)
7
Depth of cut minimum - inch (APMN)
0.118
Depth of cut minimum - millimeter (APMN)
3
Feed maximal - millimeter
1.2
Feed minimal - millimeter
0.8
Feed_MAX_IMP_NUM
0.047
Feed_MIN_IMP_NUM
0.031
Fixing hole diameter - inch (D1)
0.283
Fixing hole diameter - millimeter (D1)
7.2
Insert diameter - inch (INSD)
0.984
Insert diameter - millimeter (INSD)
25
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Special design positive turning insert, round with 7° clearance, a diameter of 25mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF1, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for heavy to medium machining of steels
