Pramet CCGT 432R-SI:T8430 7977183 Turning Insert - Positive
MODEL 7977183
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$18.21 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
SI
Coating
T8430
Coating process
PVD
Coating property (CTP)
1
Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Cutting edge length - inch (L)
0.508
Cutting edge length - millimeter (L)
12.9
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
C - rhombic 80° included angle
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76

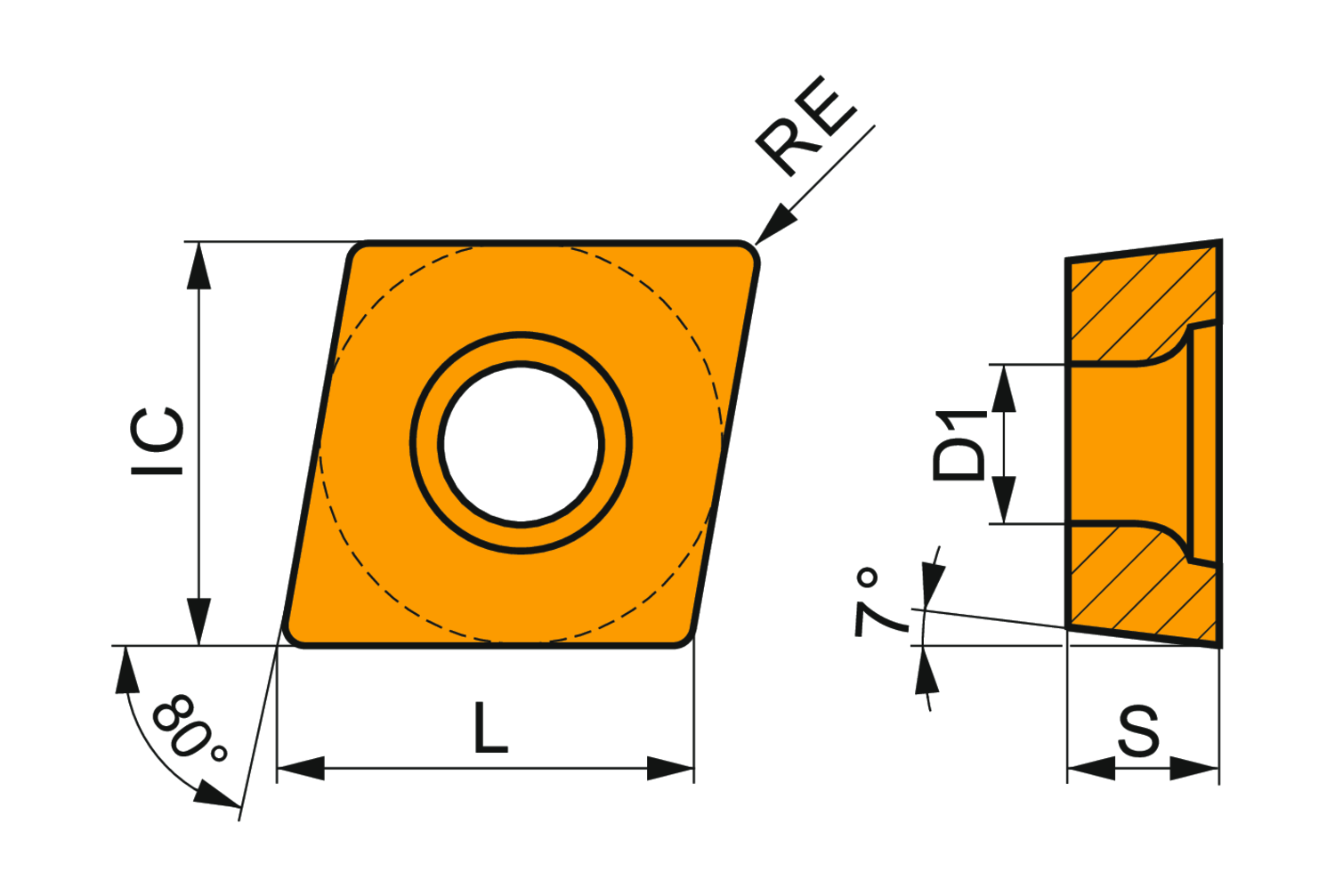

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SI with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to medium machining of steels and stainless-steels with a right handed turning tool
