Pramet RCMT 0803MOE-FM:T9325 6753984 Turning Insert - Positive
MODEL 6753984
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$7.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
T9325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Slightly positive effect on tool life
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.8
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.031
Feed_MIN_IMP_NUM
0.006

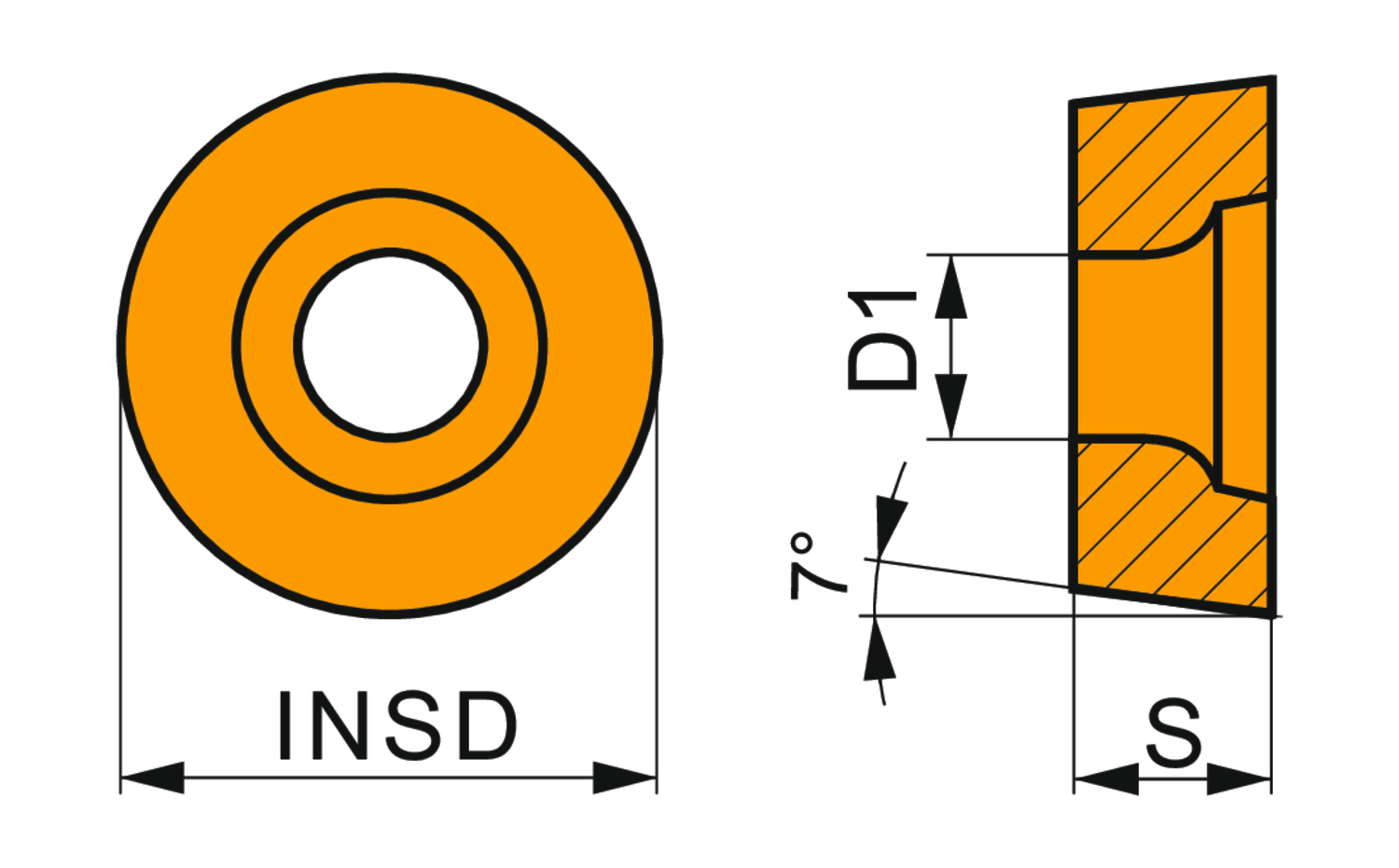

Fixing hole diameter - inch (D1)
0.134
Fixing hole diameter - millimeter (D1)
3.4
Insert diameter - inch (INSD)
0.315
Insert diameter - millimeter (INSD)
8
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.125
Insert thickness - millimeter (S)
3.18
Single-sided positive turning insert, round with 7° clearance, a diameter of 8mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels
