Pramet RCMW 0803MO:T5315 6922816 Turning Insert - Positive
MODEL 6922816
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$6.18 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T5315
Coating process
MT-CVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.004

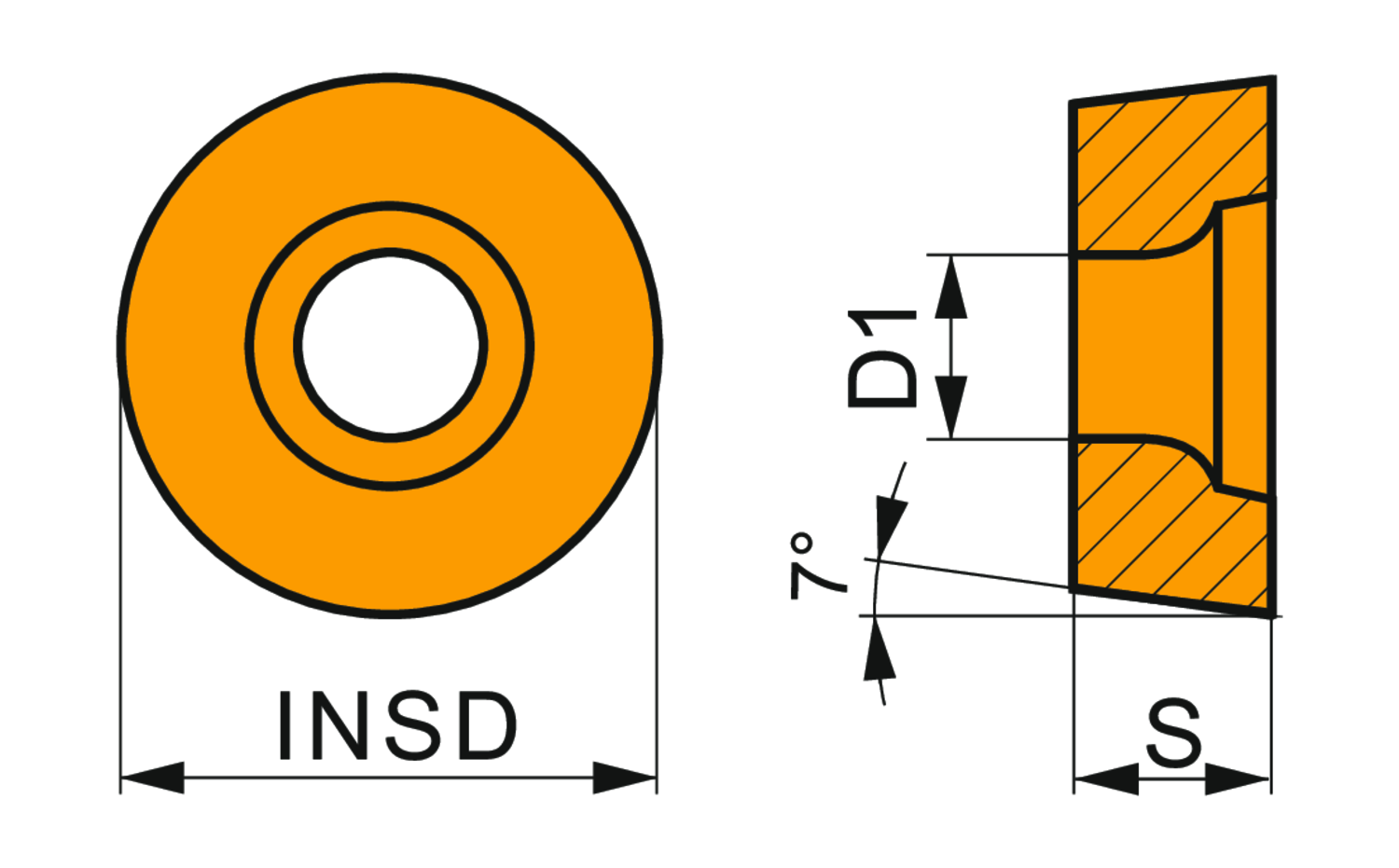

Fixing hole diameter - inch (D1)
0.134
Fixing hole diameter - millimeter (D1)
3.4
Insert diameter - inch (INSD)
0.315
Insert diameter - millimeter (INSD)
8
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.125
Insert thickness - millimeter (S)
3.18
Single-sided positive turning insert, round with 7° clearance, a diameter of 8mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine machining of cast-irons
