Pramet A20Q-SWLCR 06 6761021 Boring Bar ISO S - Right Hand
MODEL 6761021
$155.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

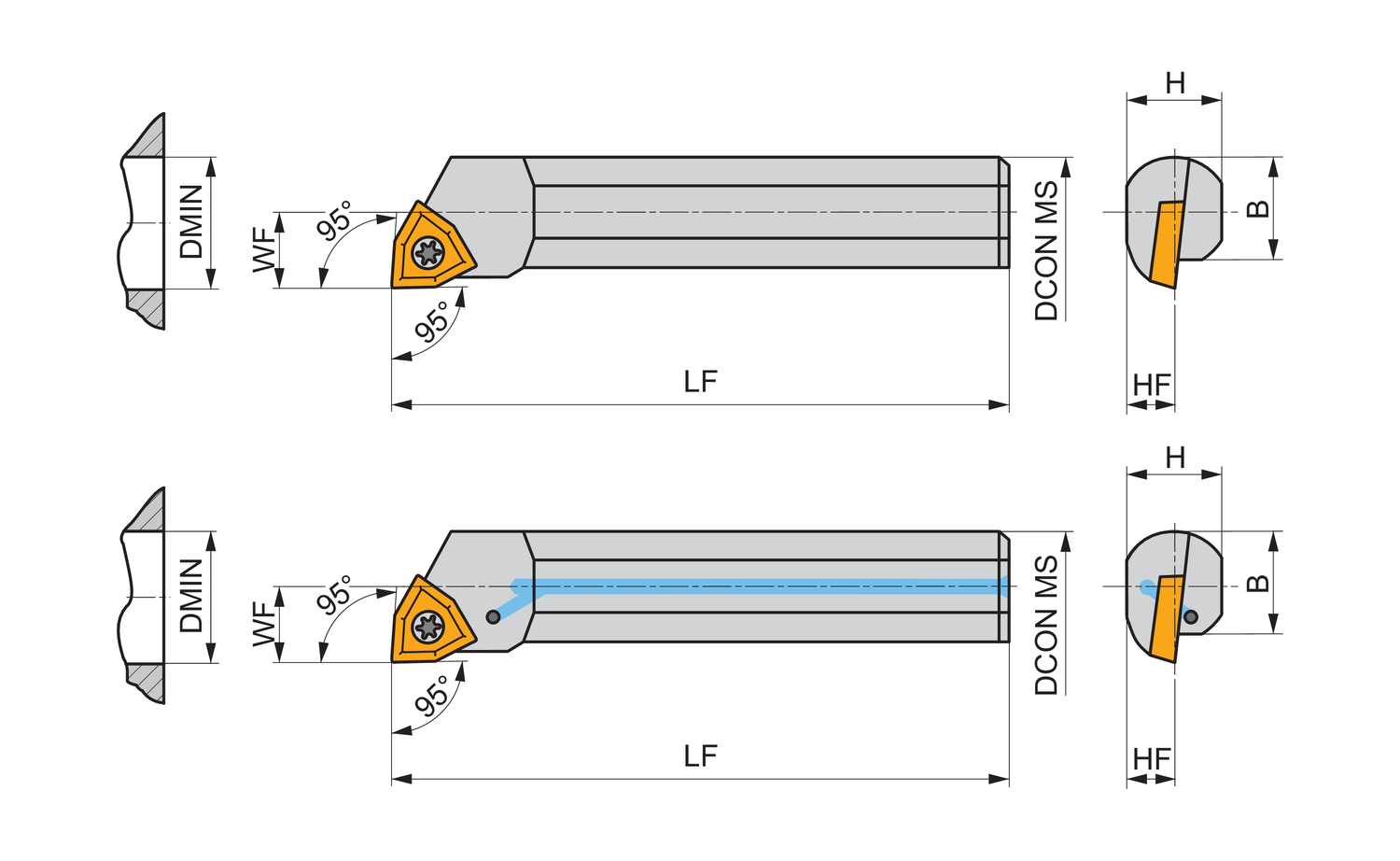

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
7.087
Functional length - millimeter (LF)
180
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Inclination angle (LAMS)
-7
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.709
Shank height - millimeter (H)
18
Shank width - inch (B)
0.728
Shank width - millimeter (B)
18.5
Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation WC.. 06T3.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 20mm diameter x 180mm long for taper boring and longitudinal boring with and without shoulder
