Pramet A20S-SVUCL 13 6760921 Boring Bar ISO S - Left Hand
MODEL 6760921
$164.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

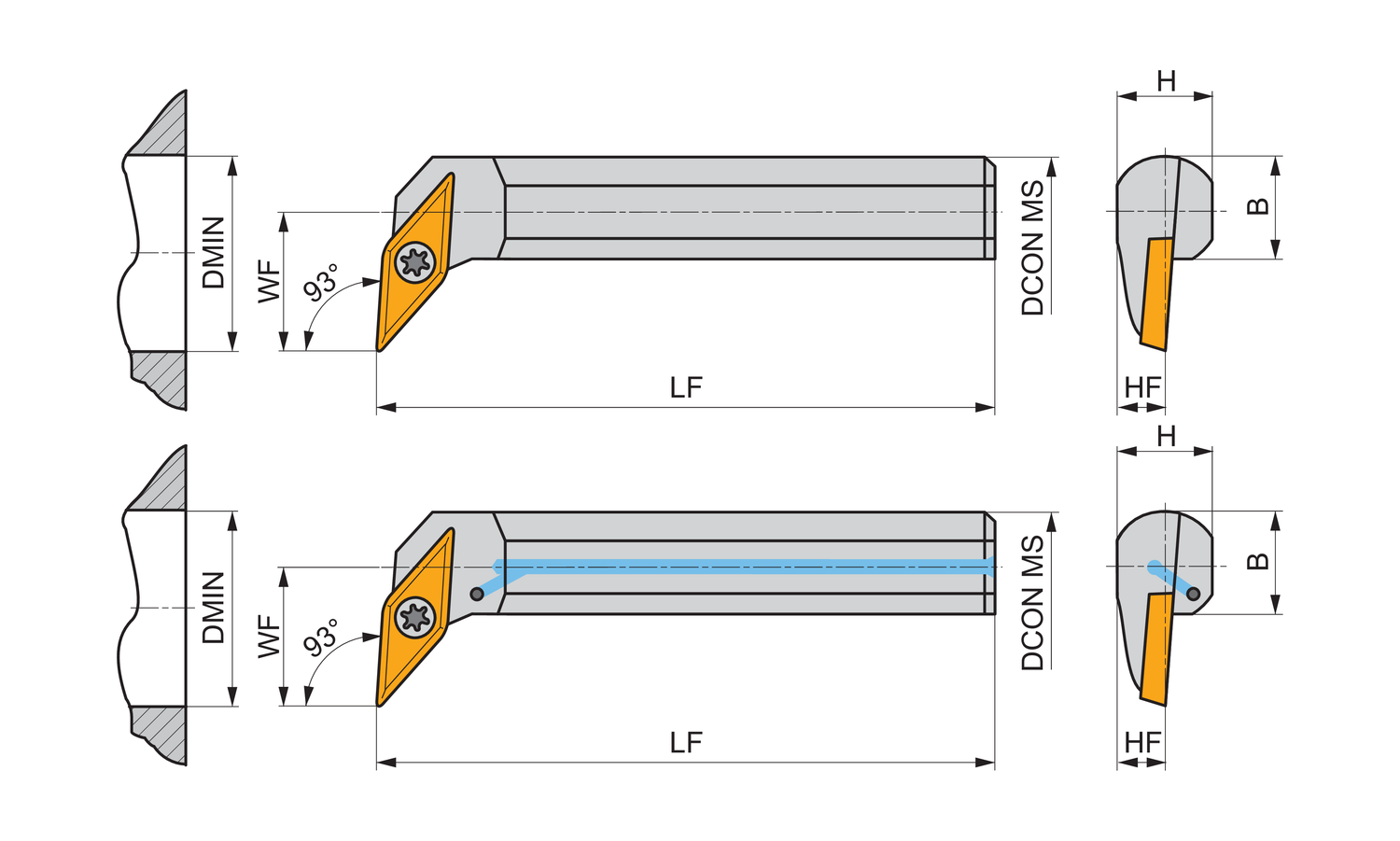

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
9.843
Functional length - millimeter (LF)
250
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Hand (Cutting direction)
Left
Inclination angle (LAMS)
-4
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
2
Shank height - inch (H)
0.748
Shank height - millimeter (H)
19
Shank width - inch (B)
0.728
Shank width - millimeter (B)
18.5
Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 20mm diameter x 250mm long for single and multi-directional copy boring and back chamfering
