Pramet A24T-DCLNR 4 6788506 Boring Bar ISO D - Left Hand
MODEL 6788506
$320.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

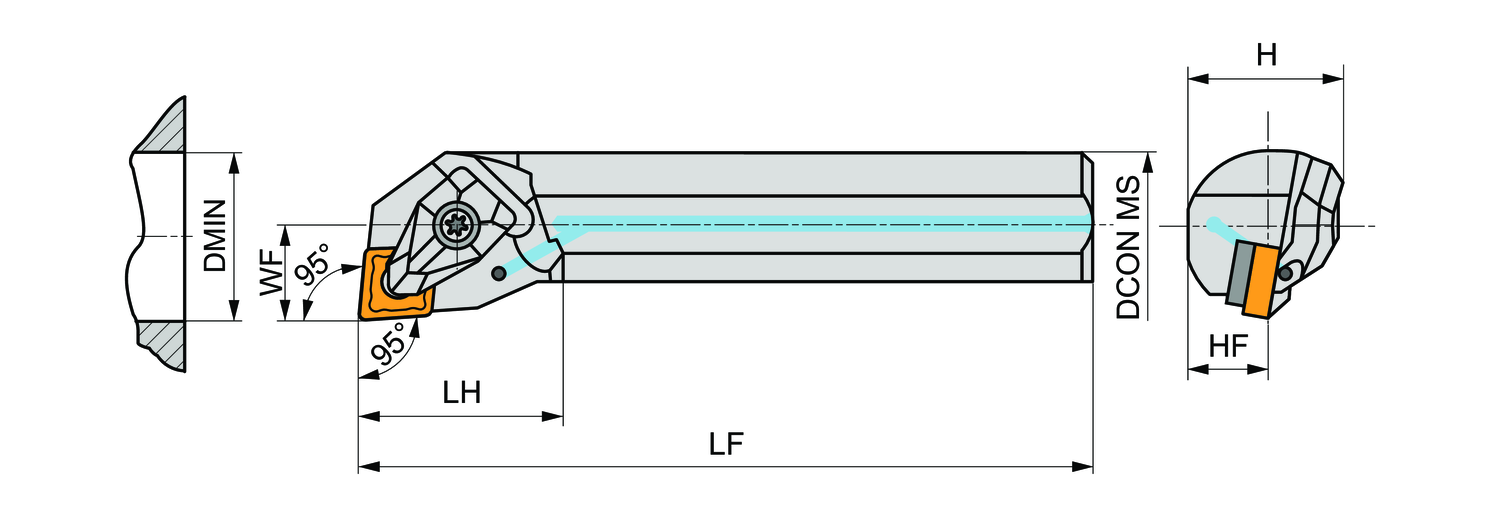

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.5
Connection diameter - millimeter (DCON MS)
38.1
Coolant supply property (CSP)
1
Functional length - inch (LF)
12
Functional width - inch (WF)
0.89
Head length - inch (LH)
1.575
Inclination angle (LAMS)
-16
Minimum bore diameter - inch (DMIN)
1.76
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
1.374
Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CN.. 43. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 1.1/2'' diameter x 12'' long for taper boring and longitudinal boring with and without shoulder
