Pramet A40T-DVUNL 16 7028497 Boring Bar ISO D - Left Hand
MODEL 7028497
$336.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

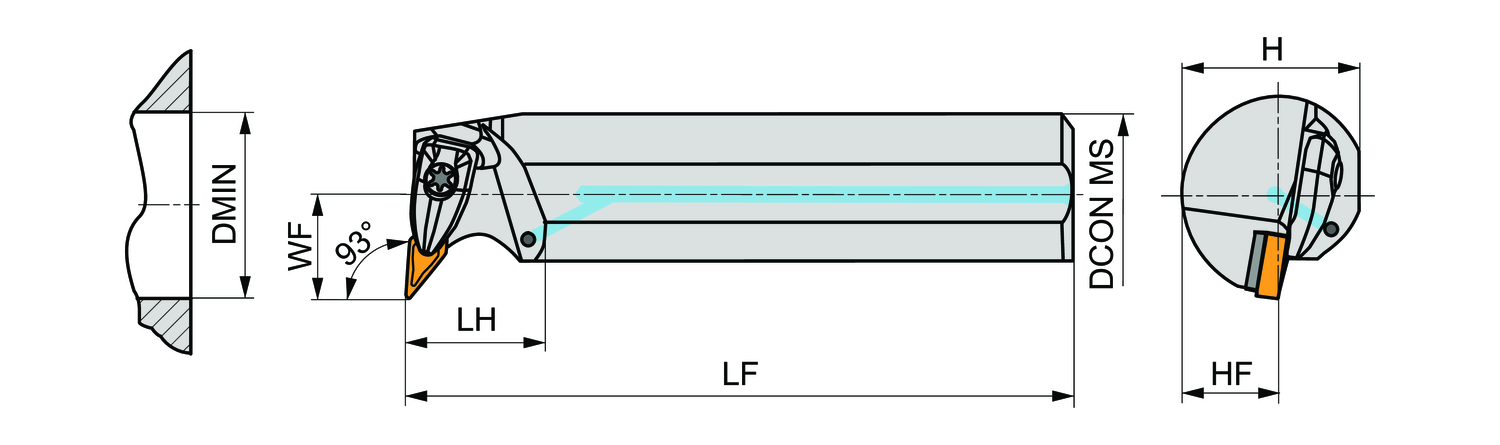

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
0.728
Functional height - millimeter (HF)
18.5
Functional length - inch (LF)
11.811
Functional length - millimeter (LF)
300
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Head length - inch (LH)
1.417
Head length - millimeter (LH)
36
Inclination angle (LAMS)
-9
Minimum bore diameter - inch (DMIN)
1.969
Minimum bore diameter - millimeter (DMIN)
50
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
1.457
Shank height - millimeter (H)
37
Double clamp boring bar for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
