Pramet E0508H-SWUCR 02 6760587 Boring Bar Carbide ISO S - Right Hand
MODEL 6760587
$425.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-17
Body diameter - inch (BD)
0.197
Body diameter - millimeter (BD)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.114
Functional width - millimeter (WF)
2.9
Head length - inch (LH)
0.945
Head length - millimeter (LH)
24
Minimum bore diameter - inch (DMIN)
0.228
Minimum bore diameter - millimeter (DMIN)
5.8

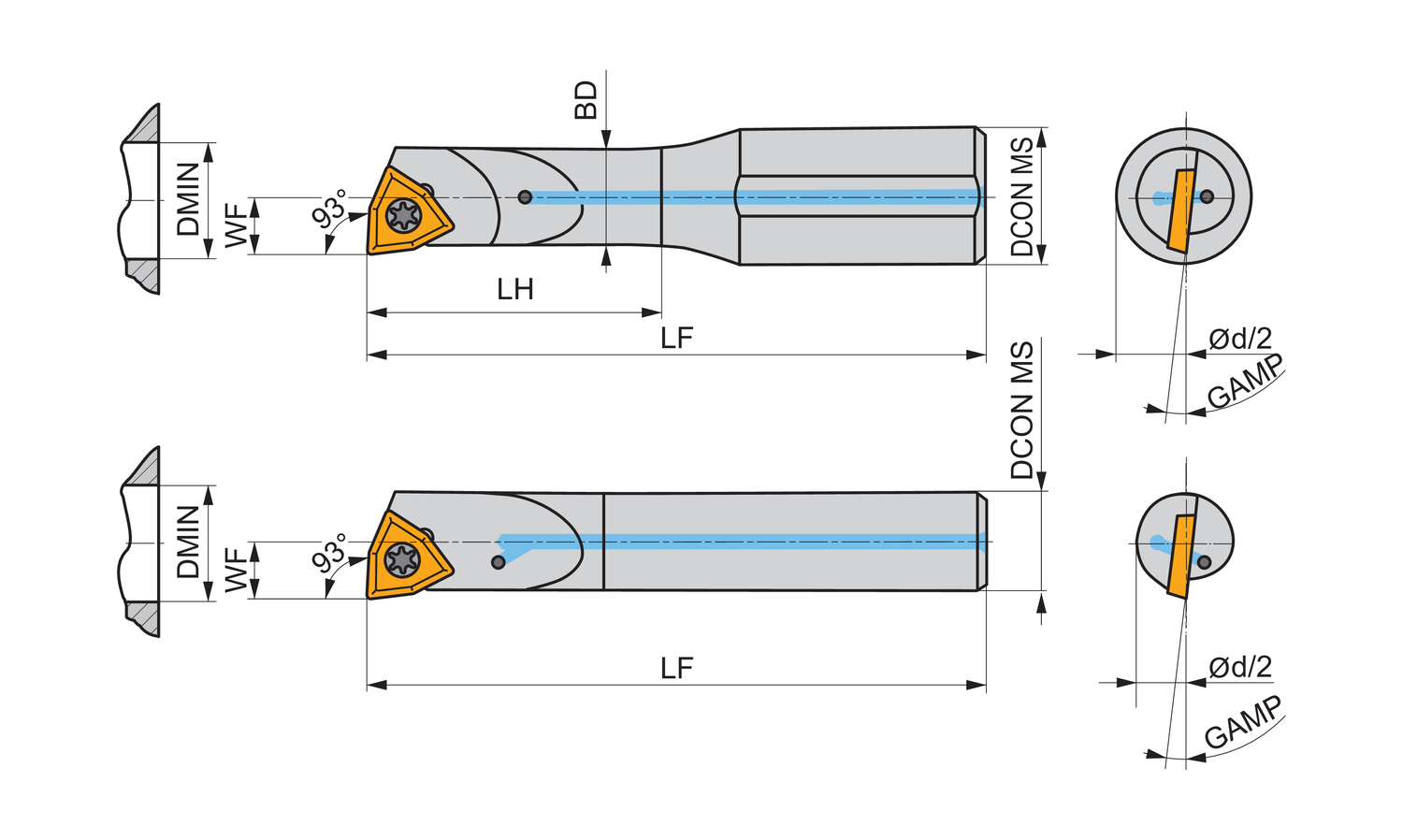

Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 3.97mm, 1.59mm thick (ISO designation WC.. 0201.. ), right hand 93° end cutting with off-set shank, carbide with coolant hole, 5mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder
