Pramet C4-DSSNL-27042-12 7809799 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809799
$250.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

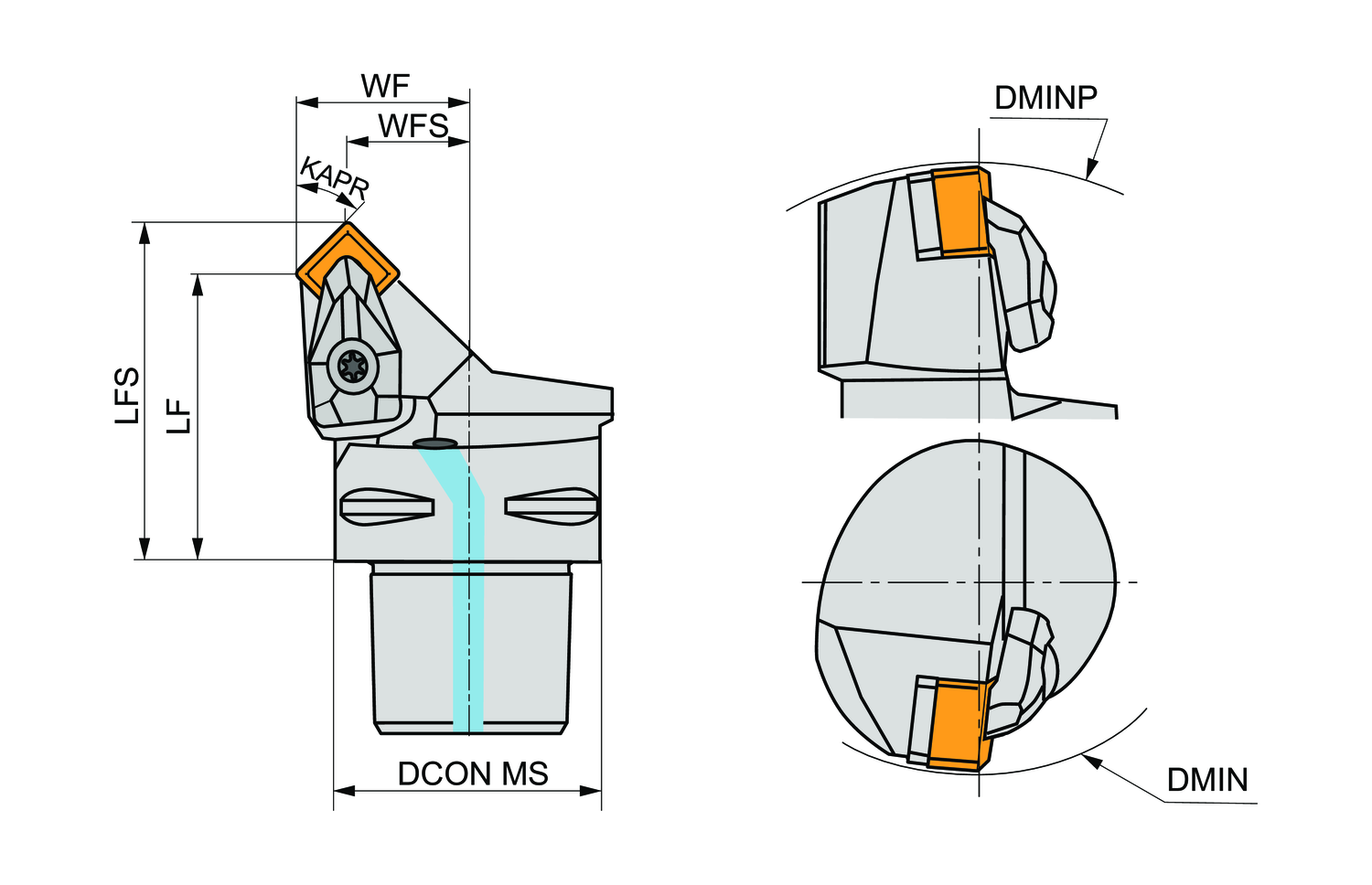

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
1.654
Functional length - millimeter (LF)
42
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Functional width secondary - millimeter (WFS)
18.7
Minimum bore diameter - inch (DMIN)
4.331
Minimum bore diameter - millimeter (DMIN)
110
Minimum bore diameter Perpendicular - millimeter (DMINP)
140
Ortogonal rake angle (GAMO)
-8
Tool cutting edge angle (KAPR)
45
Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), left hand 45° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 42mm protruding length for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder
