Image for Illustration purposes only. Actual product may vary
Pramet C4-SVJBR-27050-16 7809853 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809853
$301.42 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

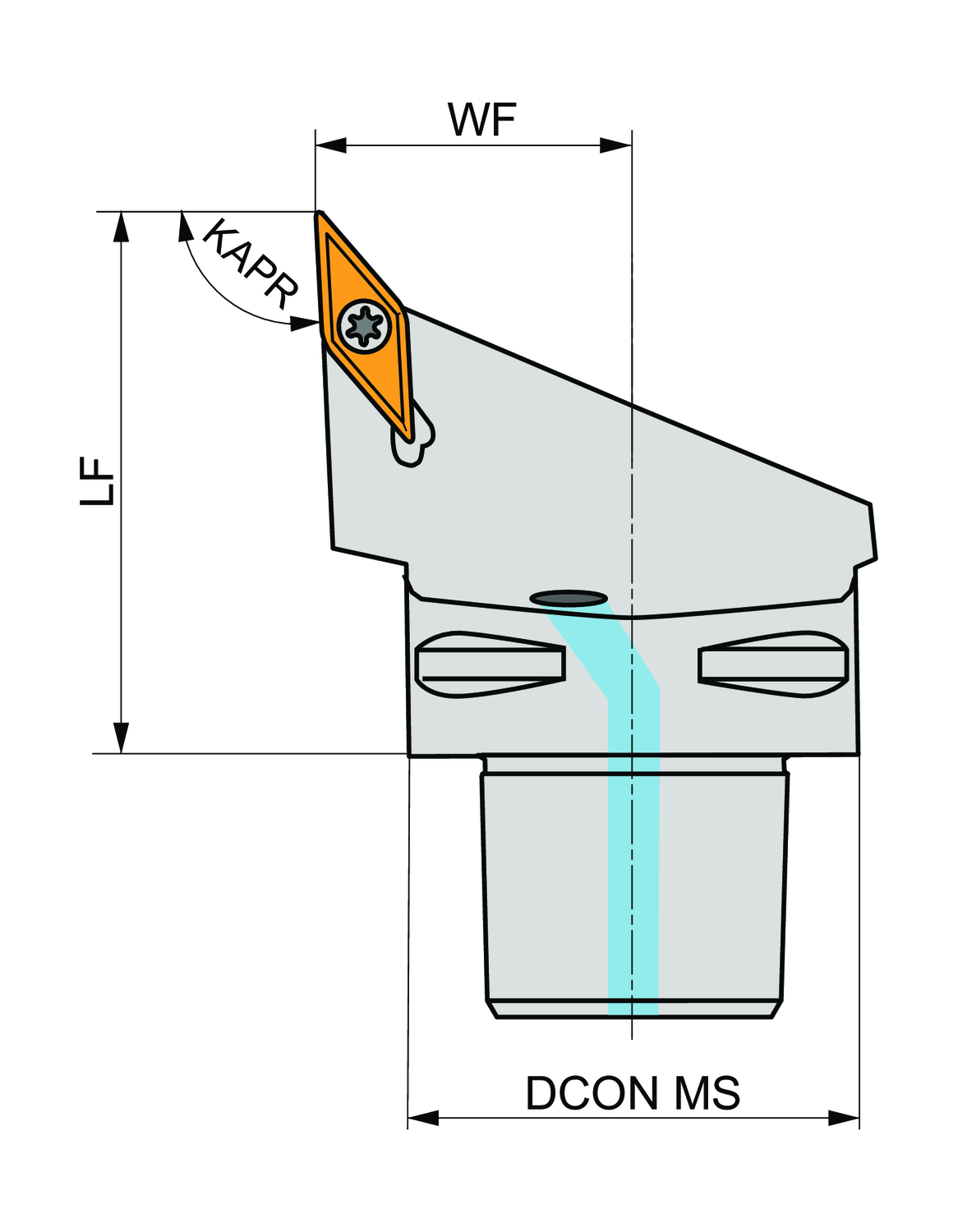

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
93
Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), right hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 50mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
