Image for Illustration purposes only. Actual product may vary
Pramet C5-DCLNR-17090-12 7809865 Turning Toolholder Polygon Shank Coupling ISO D - Internal
MODEL 7809865
$390.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

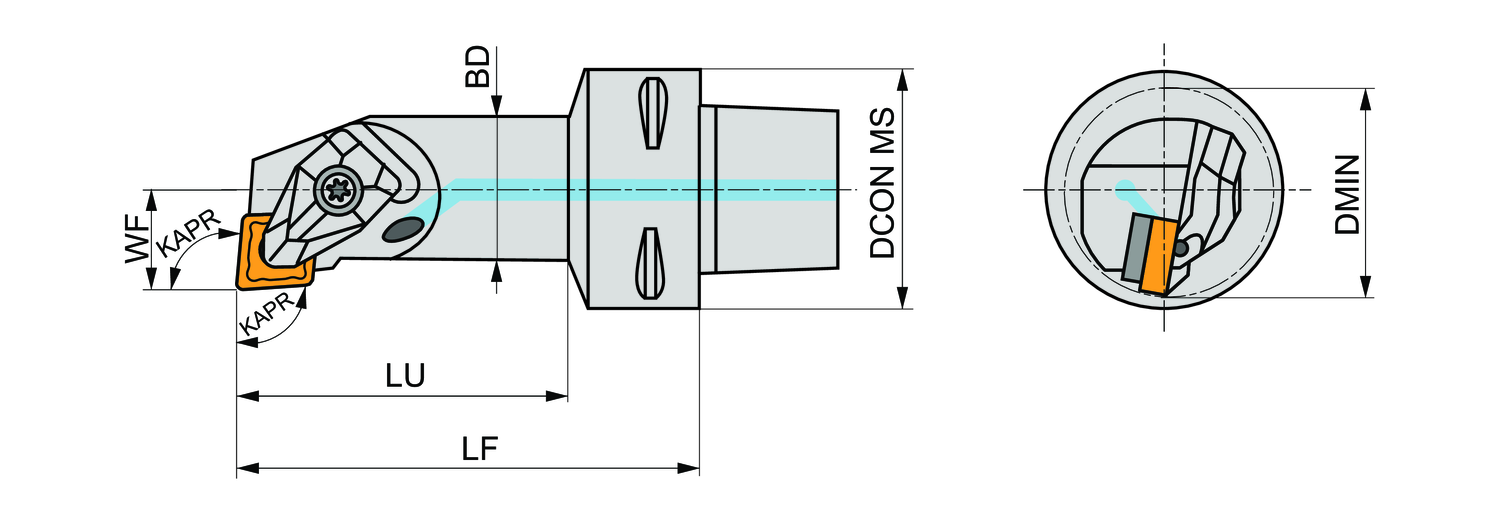

Body diameter - inch (BD)
0.984
Body diameter - millimeter (BD)
25
Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
3.543
Functional length - millimeter (LF)
90
Functional width - inch (WF)
0.669
Functional width - millimeter (WF)
17
Inclination angle (LAMS)
-12
Minimum bore diameter - inch (DMIN)
1.26
Minimum bore diameter - millimeter (DMIN)
32
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
95
Usable Length - inch (LU)
2.598
Usable Length - millimeter (LU)
66
Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 17mm funtional width and 90mm protruding length for taper boring and longitudinal boring with and without shoulder
