Pramet C5-DCLNR-35060-12 7809766 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809766
$278.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

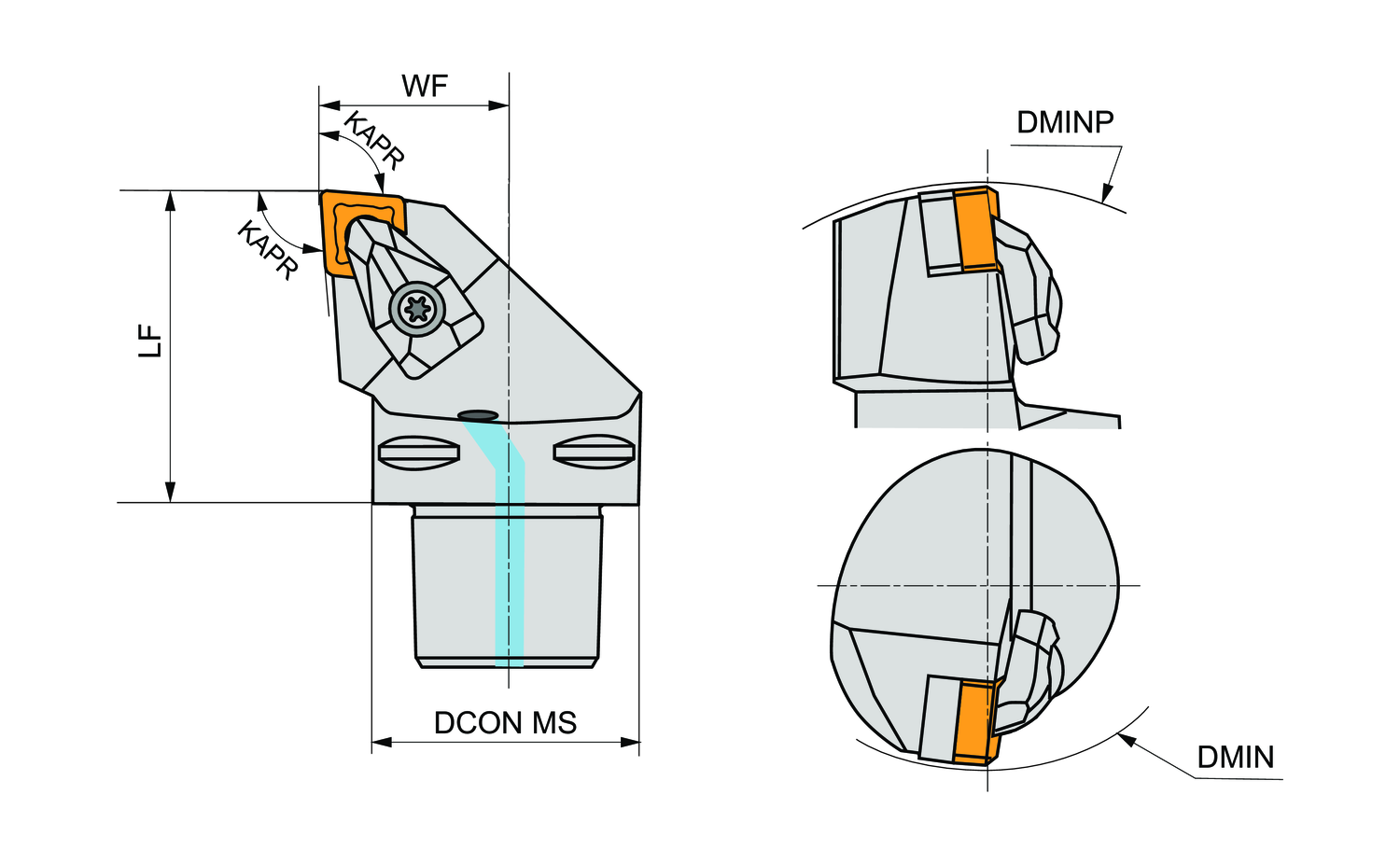

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
2.362
Functional length - millimeter (LF)
60
Functional width - inch (WF)
1.378
Functional width - millimeter (WF)
35
Inclination angle (LAMS)
-6
Minimum bore diameter - inch (DMIN)
4.331
Minimum bore diameter - millimeter (DMIN)
110
Minimum bore diameter Perpendicular - millimeter (DMINP)
165
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
95
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 35mm funtional width and 60mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
