Pramet C5-SCLCL-11070-09 7809882 Turning Toolholder Polygon Shank Coupling ISO S - Internal
MODEL 7809882
$390.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

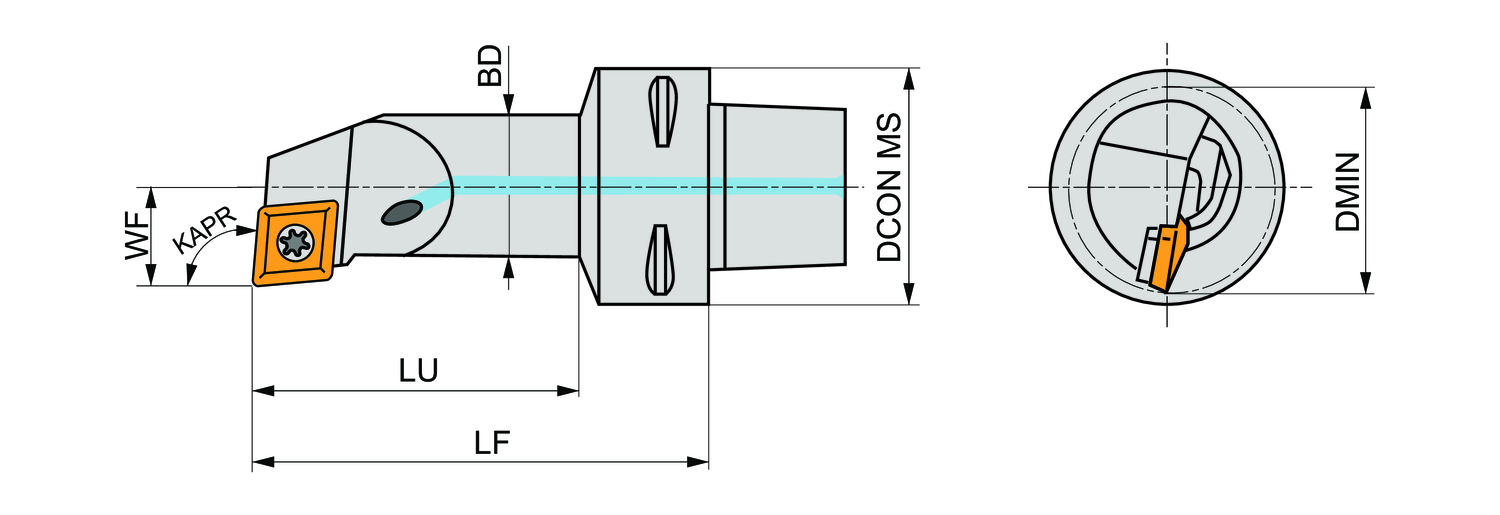

Body diameter - inch (BD)
0.63
Body diameter - millimeter (BD)
16
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
2.756
Functional length - millimeter (LF)
70
Functional width - inch (WF)
0.433
Functional width - millimeter (WF)
11
Inclination angle (LAMS)
-8.4
Minimum bore diameter - inch (DMIN)
0.787
Minimum bore diameter - millimeter (DMIN)
20
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
95
Usable Length - inch (LU)
1.811
Usable Length - millimeter (LU)
46
Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 11mm funtional width and 70mm protruding length for taper boring and longitudinal boring with and without shoulder
