Image for Illustration purposes only. Actual product may vary
Pramet DCBNR 2525 M 12 7028405 Turning Toolholder ISO D
MODEL 7028405
$113.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

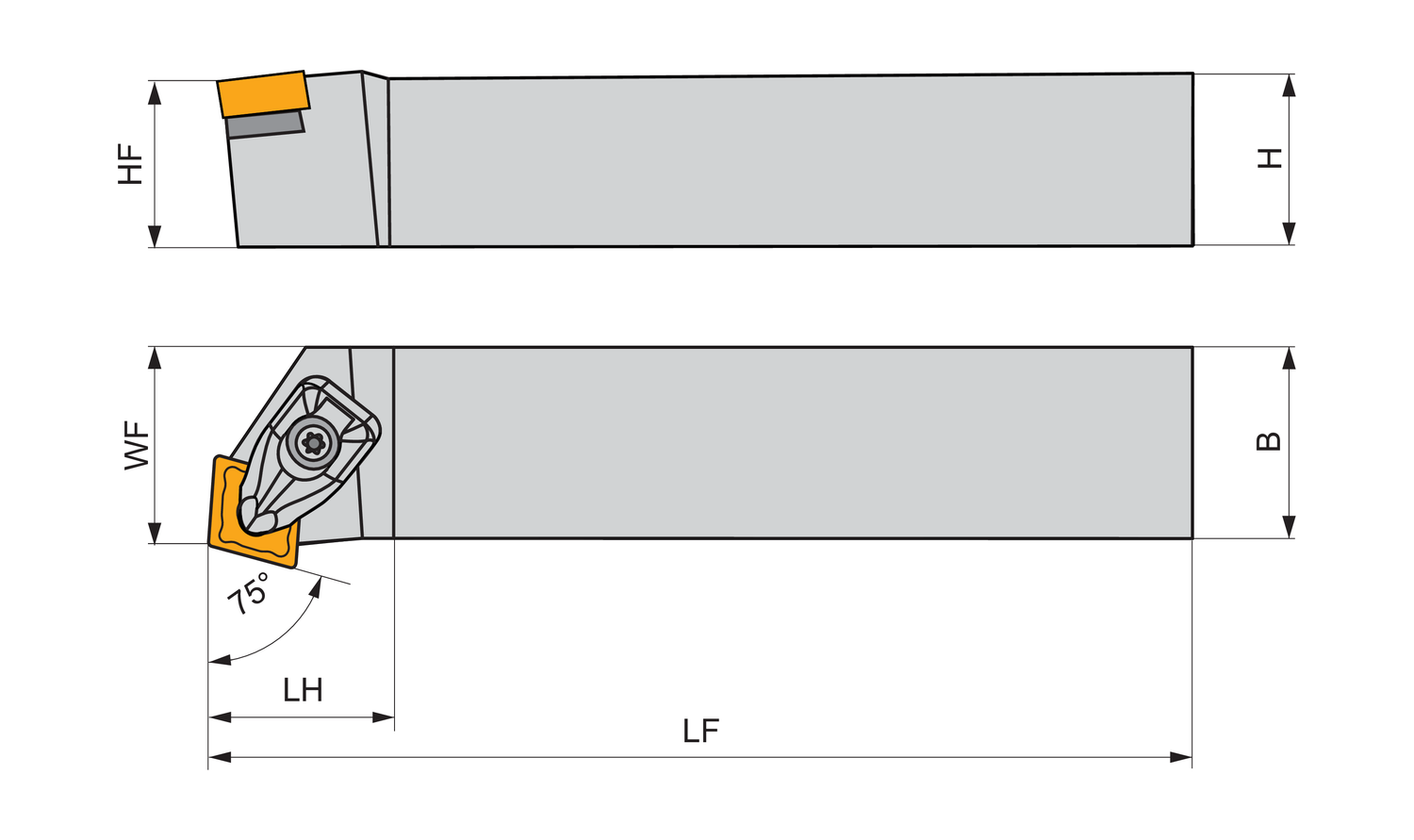

Clamping Type Code (MTP)
System D
Direction of tool
Right
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.866
Functional width - millimeter (WF)
22
Hand (Cutting direction)
Right
Head length - inch (LH)
1.362
Head length - millimeter (LH)
34.6
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 75° side cutting with straight shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning and longitudinal turning without shoulder
