Pramet DCLNR 2020 K 12 6757922 Turning Toolholder ISO D
MODEL 6757922
$107.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
System D
Direction of tool
Right

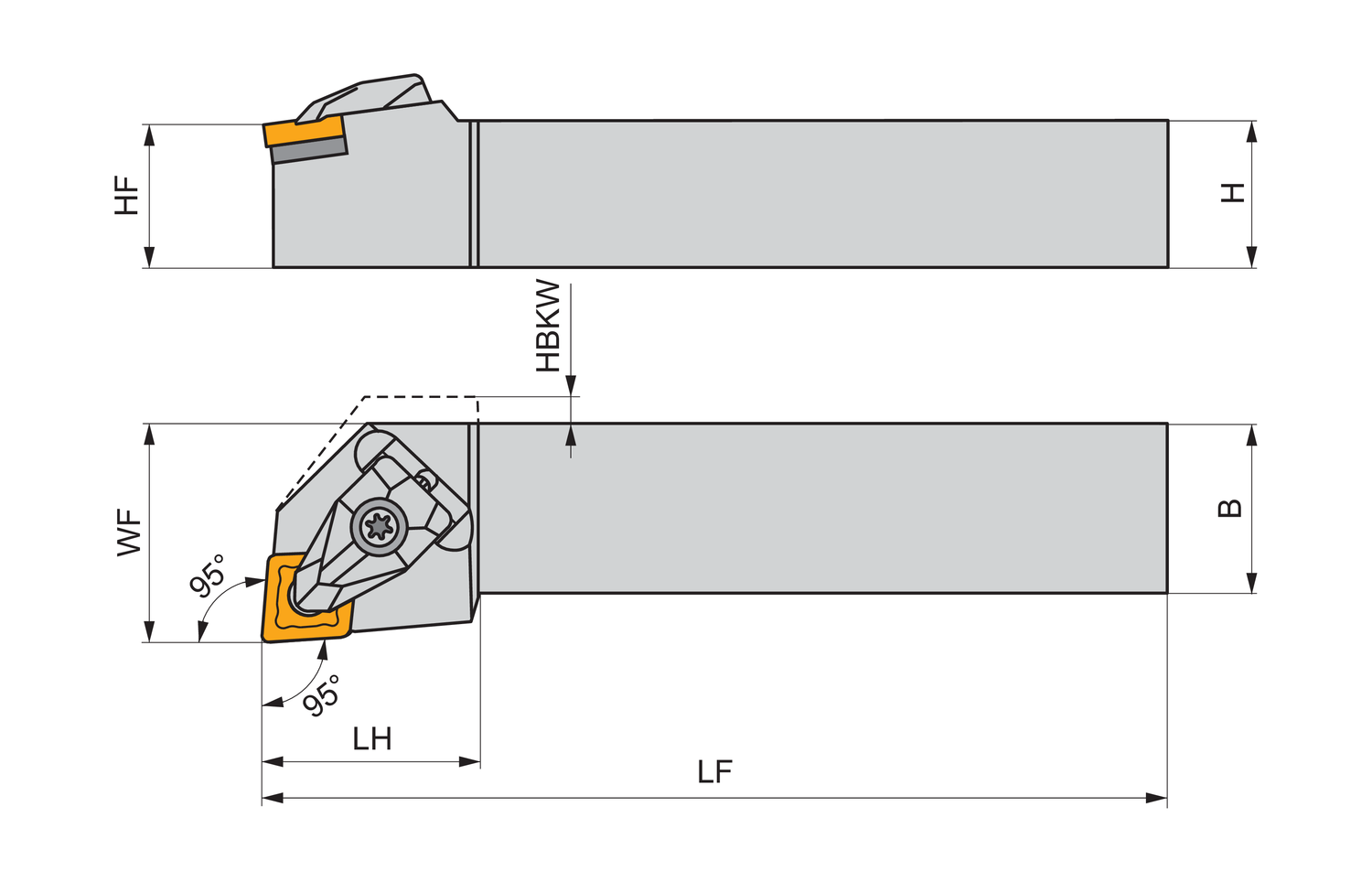

Functional height - inch (HF)
0.787
Functional height - millimeter (HF)
20
Functional length - inch (LF)
4.921
Functional length - millimeter (LF)
125
Functional width - inch (WF)
0.984
Functional width - millimeter (WF)
25
Head length - inch (LH)
1.181
Head length - millimeter (LH)
30
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.787
Shank height - millimeter (H)
20
Shank width - inch (B)
0.787
Shank width - millimeter (B)
20
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
