Image for Illustration purposes only. Actual product may vary
Pramet DKTL 5055 X A1 6759705 Turning Toolholder - Railway Wheel Reprofiling Cartridges
MODEL 6759705
$396.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

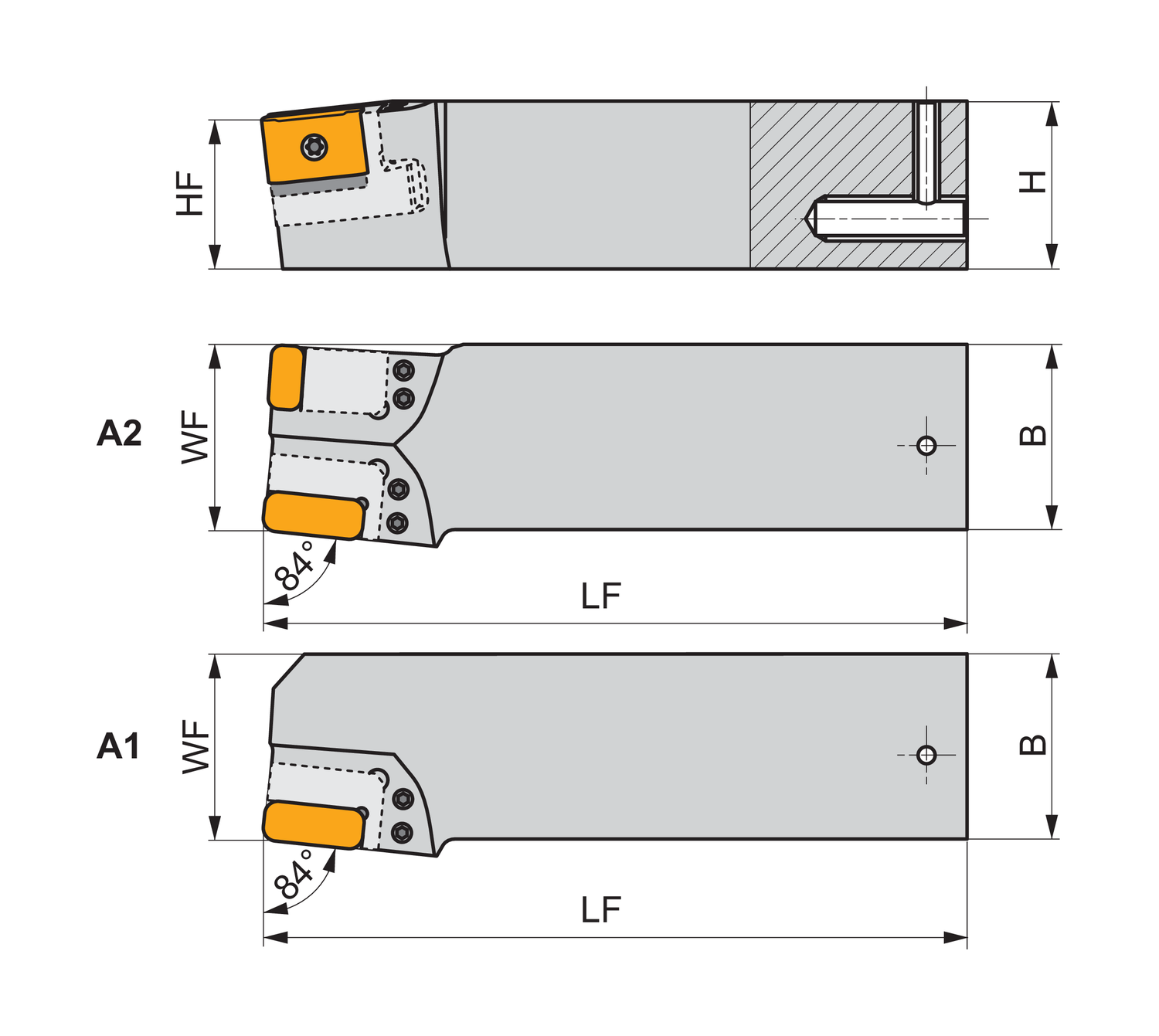

Direction of tool
Left
Functional height - inch (HF)
1.732
Functional height - millimeter (HF)
44
Functional length - inch (LF)
8.268
Functional length - millimeter (LF)
210
Functional width - inch (WF)
2.165
Functional width - millimeter (WF)
55
Hand (Cutting direction)
Left
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
1.969
Shank height - millimeter (H)
50
Shank width - inch (B)
2.165
Shank width - millimeter (B)
55
Modular system tool holder for holding a left hand KTP-(CLS)ANL turning tool cartridge, shank size 50mm x 55mm, 210mm long for wheelset machining
