Pramet KTP-SANR 19 6760268 Turning Cartridge - Railway Wheel Reprofiling
MODEL 6760268
$247.48 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

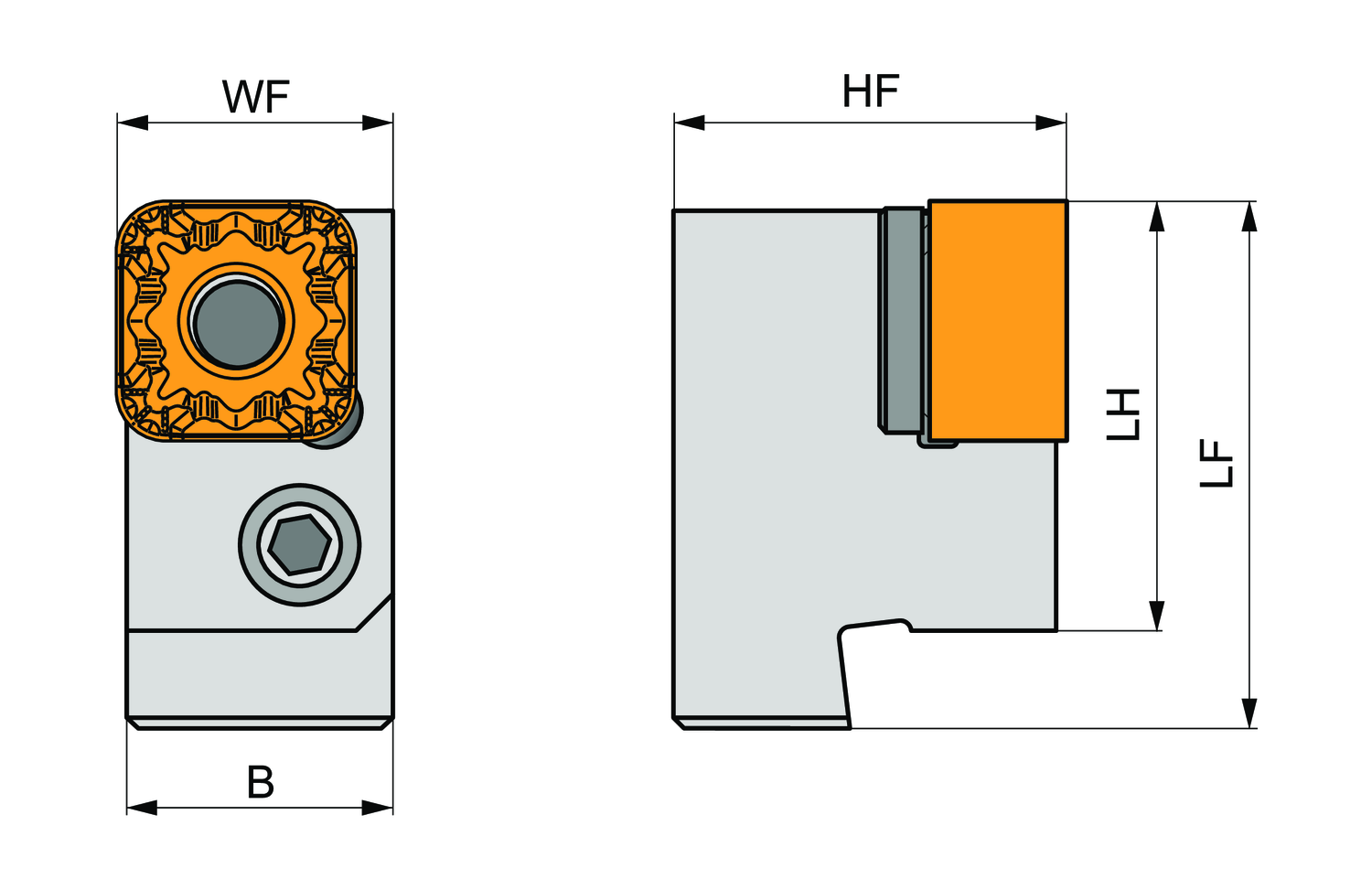

Clamping Type Code (MTP)
Hole clamping
Direction of tool
Right
Functional height - inch (HF)
1.26
Functional height - millimeter (HF)
32
Functional length - inch (LF)
1.693
Functional length - millimeter (LF)
43
Functional width - inch (WF)
0.906
Functional width - millimeter (WF)
23
Head length - inch (LH)
1.378
Head length - millimeter (LH)
35
Inclination angle (LAMS)
0
Shank width - inch (B)
0.866
Shank width - millimeter (B)
22
Lever lock modular turning tool cartridge for holding a square negative insert with an inscribed circle diameter of 19.05mm, 11mm thick (ISO designation SNMX 1911.. ), for wheelset machining, assemble with DKTR 5055 X (A1/A2) for taper turning and longitudinal turning without shoulder
