Pramet SVVCN 1212 N 13 6760444 Turning Toolholder ISO S
MODEL 6760444
$113.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Neutral
Functional height - inch (HF)
0.472
Functional height - millimeter (HF)
12
Functional length - inch (LF)
6.299
Functional length - millimeter (LF)
160
Functional width - inch (WF)
0.236
Functional width - millimeter (WF)
6
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.472
Shank height - millimeter (H)
12
Shank width - inch (B)
0.472
Shank width - millimeter (B)
12

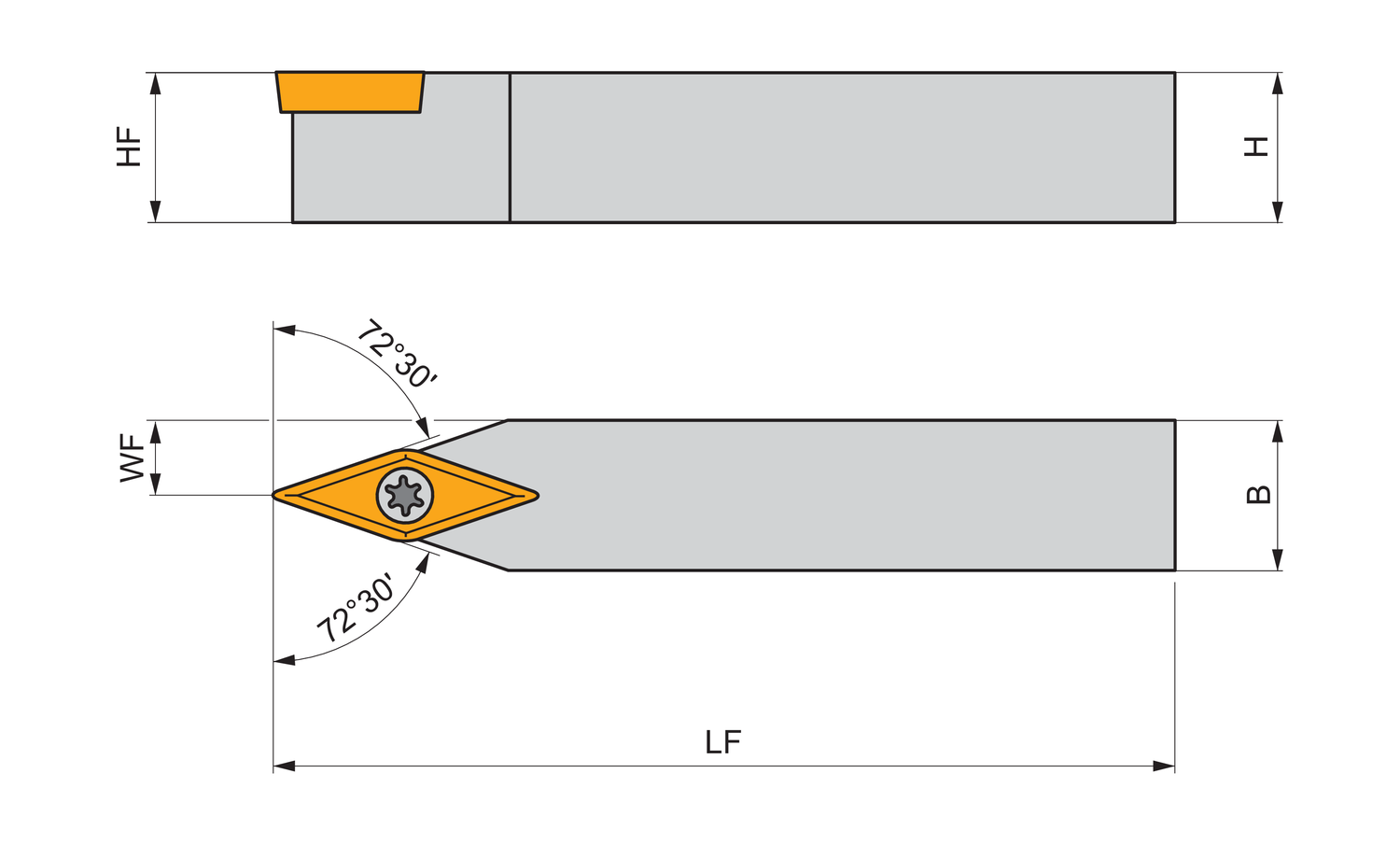

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), neutral hand 72°30' side cutting with straight shank, 12mm tool height x 12mm width x 160mm long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
