Pramet TN 22NR060ACME:T8030 6755174 Threading Insert Internal Full Profile - 29° ACME-thread
MODEL 6755174
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$41.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8030
Coating property (CTP)
1

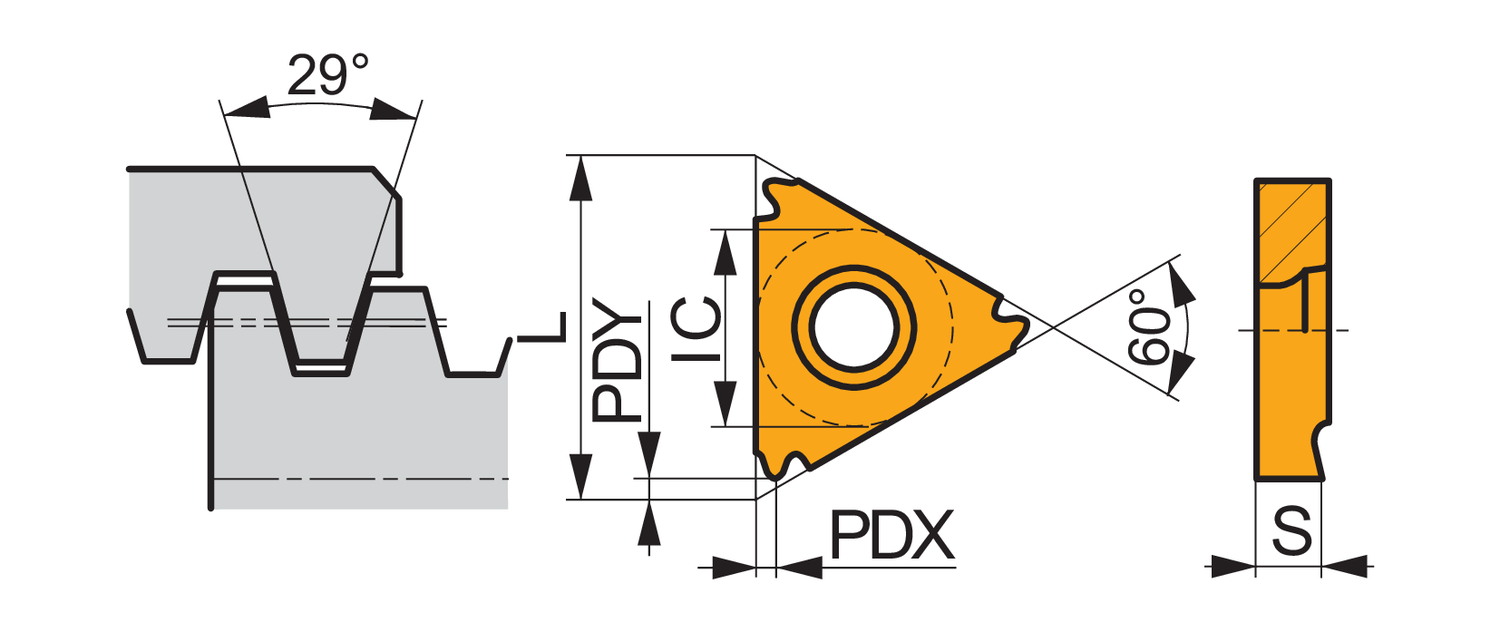

Cutting edge length - inch (L)
0.866
Cutting edge length - millimeter (L)
22
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.185
Insert thickness - millimeter (S)
4.71
Package Quantity
5
Profile distance ex - inch (PDX)
0.098
Profile distance ex - millimeter (PDX)
2.5
Profile distance ey - inch (PDY)
0.079
Profile distance ey - millimeter (PDY)
2
Thread type (TTP)
internal
Threads per inch (TPI)
6
Single-sided threading insert, triangular with an inscribed circle diameter of 12.7mm, for right hand cutting of ACME internal threads with 6TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron
