Pramet HZ 1006-60 P9:333TN 6755948 Broaching Insert
MODEL 6755948
This product has a minimum order quantity of (2 minimum) This is the minimum order quantity available when purchasing this product.
$54.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(2 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
333TN
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended
Cutting width - inch (CW)
0.236
Cutting width - millimeter (CW)
6
Cutting width lower tolerance - inch (CWTOLL)
-0.002
Cutting width lower tolerance - millimeter (CWTOLL)
-0.042
Cutting width upper tolerance - inch (CWTOLU)
0
Cutting width upper tolerance - millimeter (CWTOLU)
-0.012
Depth of cut maximum - inch (APMX)
0.165
Depth of cut maximum - millimeter (APMX)
4.2
Feed maximal - millimeter
0.15
Feed minimal - millimeter
0.03
Feed_MAX_IMP_NUM
0.006
Feed_MIN_IMP_NUM
0.001

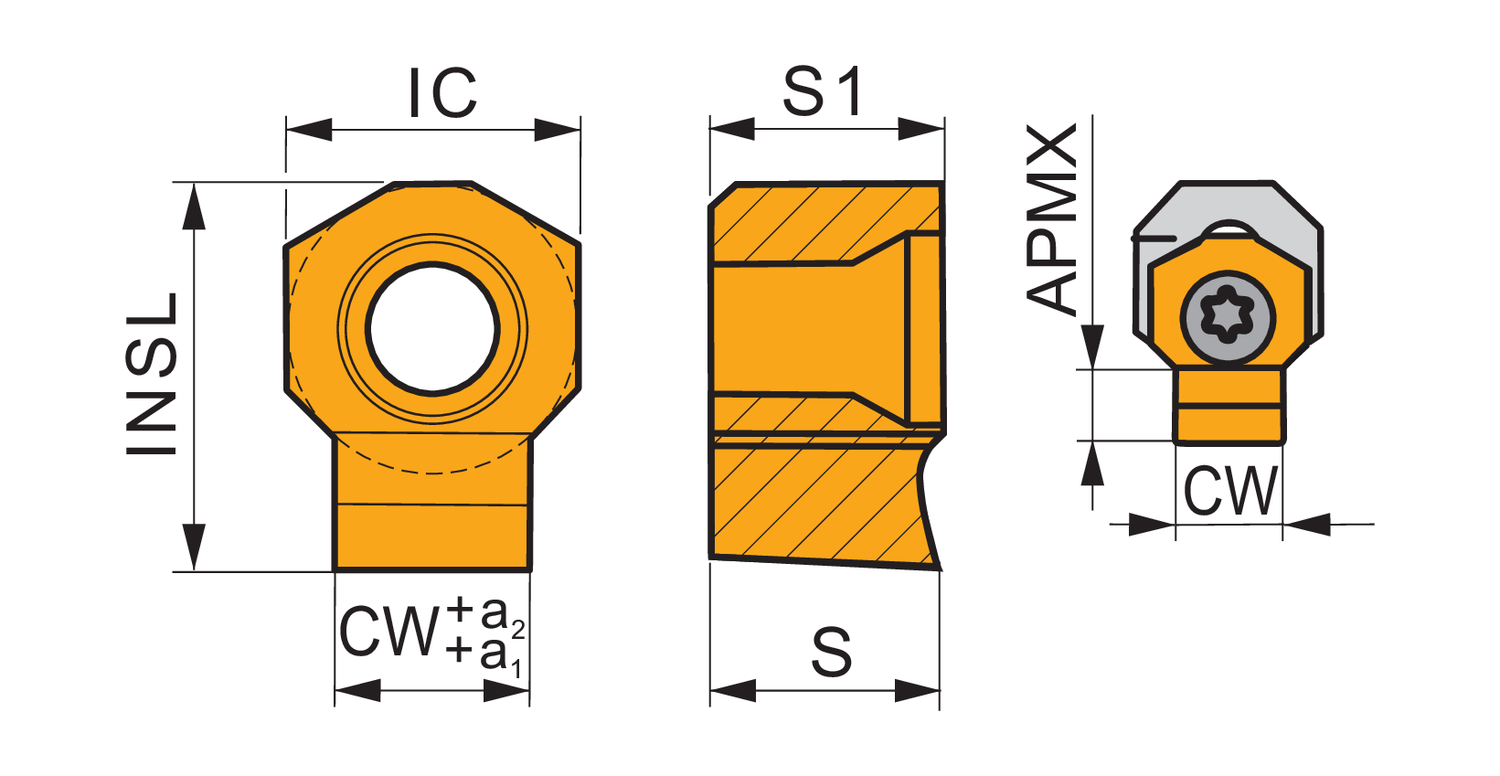

Inscribed circle diameter - inch (IC)
0.394
Inscribed circle diameter - millimeter (IC)
10
Insert length - inch (INSL)
0.531
Insert length - millimeter (INSL)
13.5
Insert shape code (SC)
H - hexagonal
Insert thickness - inch (S)
0.246
Insert thickness - millimeter (S)
6.25
Insert thickness total - inch (S1)
0.25
Insert thickness total - millimeter (S1)
6.35
Single ended keyway and slotting insert for broaching a width of 6mm within tolerance class P9, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-10 size broach
