Pramet HZ 1309-120 C11:333TN 6755409 Broaching Insert
MODEL 6755409
This product has a minimum order quantity of (2 minimum) This is the minimum order quantity available when purchasing this product.
$61.36 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(2 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
333TN
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended
Cutting width - inch (CW)
0.472
Cutting width - millimeter (CW)
12
Cutting width lower tolerance - inch (CWTOLL)
0.004
Cutting width lower tolerance - millimeter (CWTOLL)
0.095
Cutting width upper tolerance - inch (CWTOLU)
0.008
Cutting width upper tolerance - millimeter (CWTOLU)
0.205
Depth of cut maximum - inch (APMX)
0.283
Depth of cut maximum - millimeter (APMX)
7.2
Feed maximal - millimeter
0.2
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.002

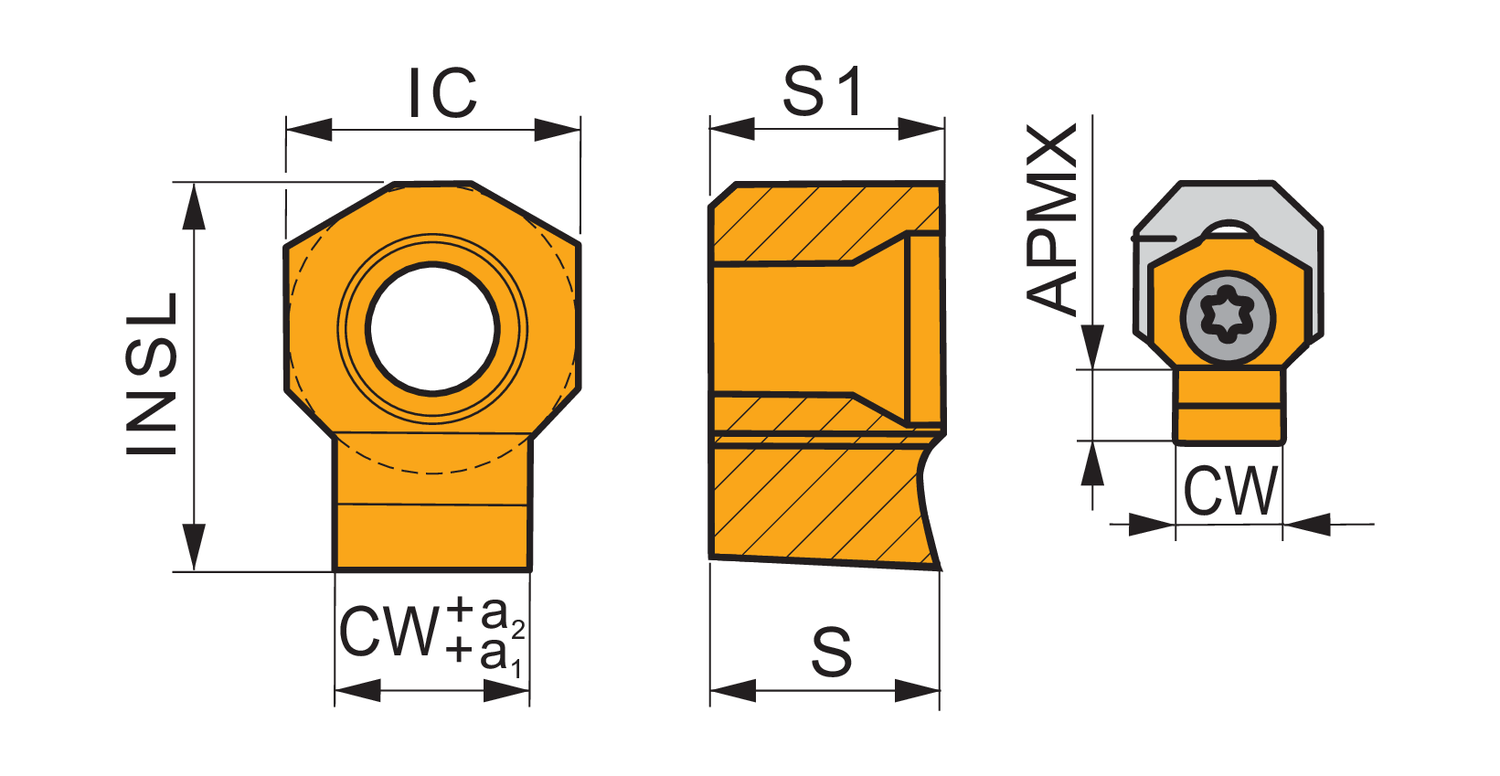

Inscribed circle diameter - inch (IC)
0.512
Inscribed circle diameter - millimeter (IC)
13
Insert length - inch (INSL)
0.728
Insert length - millimeter (INSL)
18.5
Insert shape code (SC)
H - hexagonal
Insert thickness - inch (S)
0.37
Insert thickness - millimeter (S)
9.4
Insert thickness total - inch (S1)
0.375
Insert thickness total - millimeter (S1)
9.53
Single ended keyway and slotting insert for broaching a width of 12mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-13 size broach
