Pramet HZ/2 20-20 C11:333TN 6755489 Broaching Insert
MODEL 6755489
This product has a minimum order quantity of (2 minimum) This is the minimum order quantity available when purchasing this product.
$221.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(2 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
333TN
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

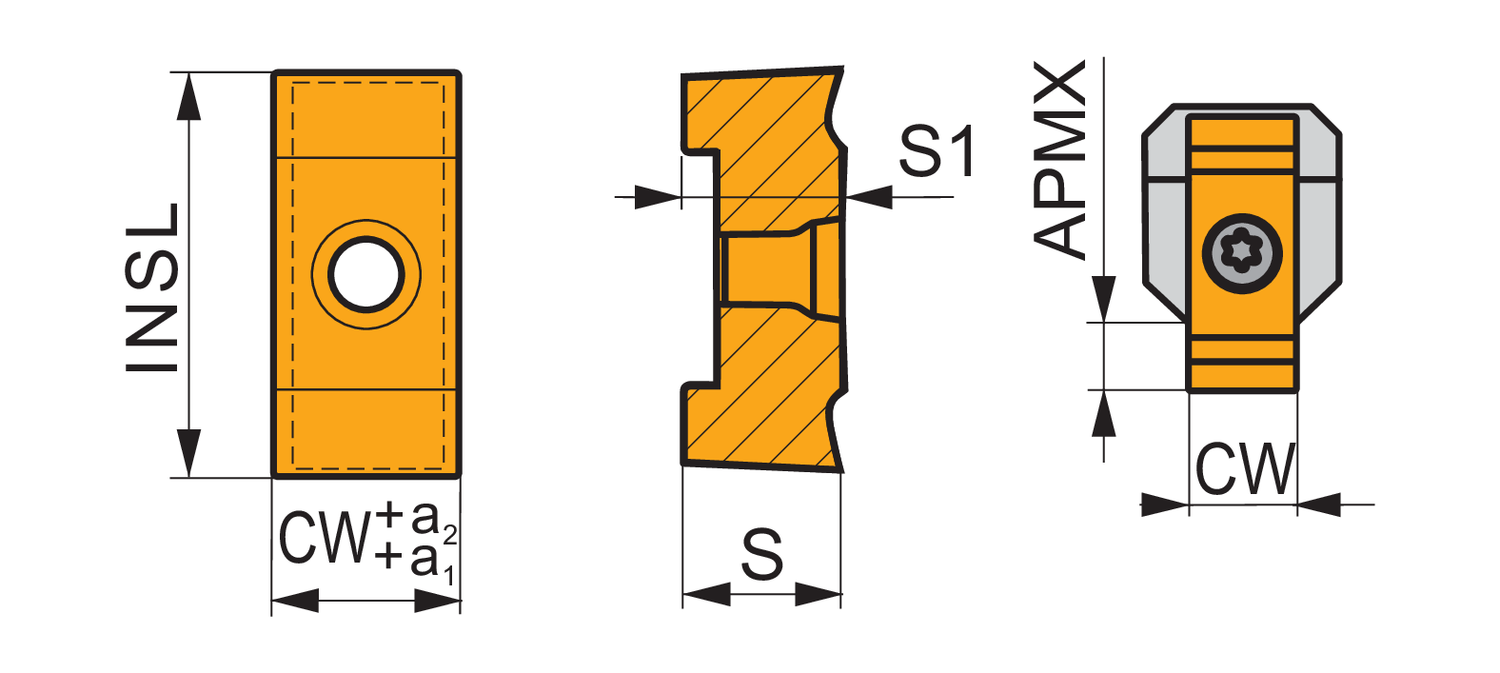

Cutting width - inch (CW)
0.787
Cutting width - millimeter (CW)
20
Cutting width lower tolerance - inch (CWTOLL)
0.004
Cutting width lower tolerance - millimeter (CWTOLL)
0.11
Cutting width upper tolerance - inch (CWTOLU)
0.009
Cutting width upper tolerance - millimeter (CWTOLU)
0.24
Depth of cut maximum - inch (APMX)
0.512
Depth of cut maximum - millimeter (APMX)
13
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.09
Feed_MAX_IMP_NUM
0.014
Feed_MIN_IMP_NUM
0.004
Insert length - inch (INSL)
1.772
Insert length - millimeter (INSL)
45
Insert shape code (SC)
H - hexagonal
Insert thickness - inch (S)
0.626
Insert thickness - millimeter (S)
15.9
Insert thickness total - inch (S1)
0.63
Insert thickness total - millimeter (S1)
16
Double ended keyway and slotting insert for broaching a width of 20mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-18 size broach
