MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
Pramet A16S-GGHR 0313 6790493 Boring Bar For Grooving - Right Hand
MODEL 6790493
$263.34 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

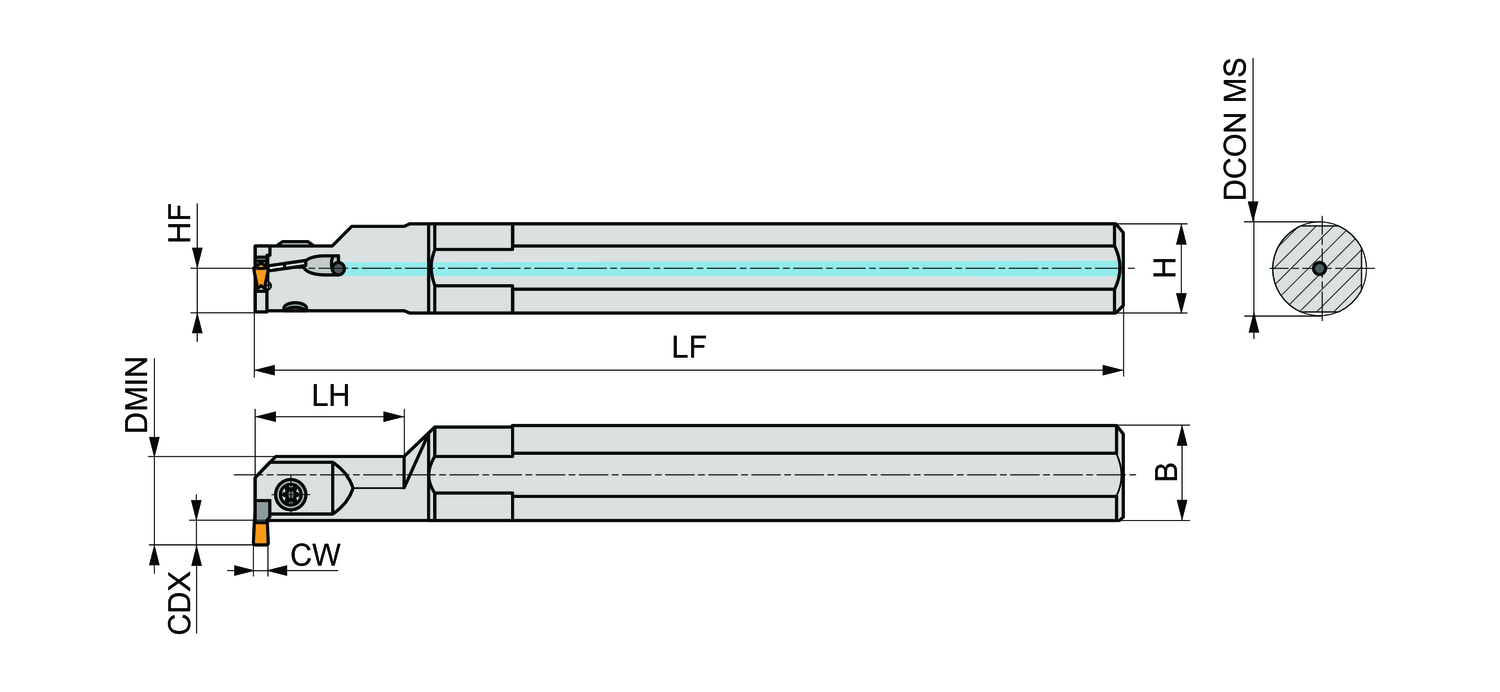

Clamping Type Code (MTP)
System G
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Cutting depth maximum - inch (CDX)
0.295
Cutting width - inch (CW)
0.118
Functional height - inch (HF)
0.453
Functional length - inch (LF)
10
Head length - inch (LH)
1.575
Minimum bore diameter - inch (DMIN)
0.984
Primary use
Finishing
Shank height - inch (H)
0.906
Shank width - inch (B)
0.953
Top clamp grooving bar for holding a 0.496'' long double or single ended insert with 0.118'' cutting width (designation LCM.
0313.. ), right handed with insert perpendicular to the shank for a maximum grooving depth of 0.295'', shank diameter 1'' and tool length 10'' for internal grooving and turning
