Pramet GFIR 2525 M 04 6757973 Turning Toolholder - Parting And Grooving
MODEL 6757973
$153.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

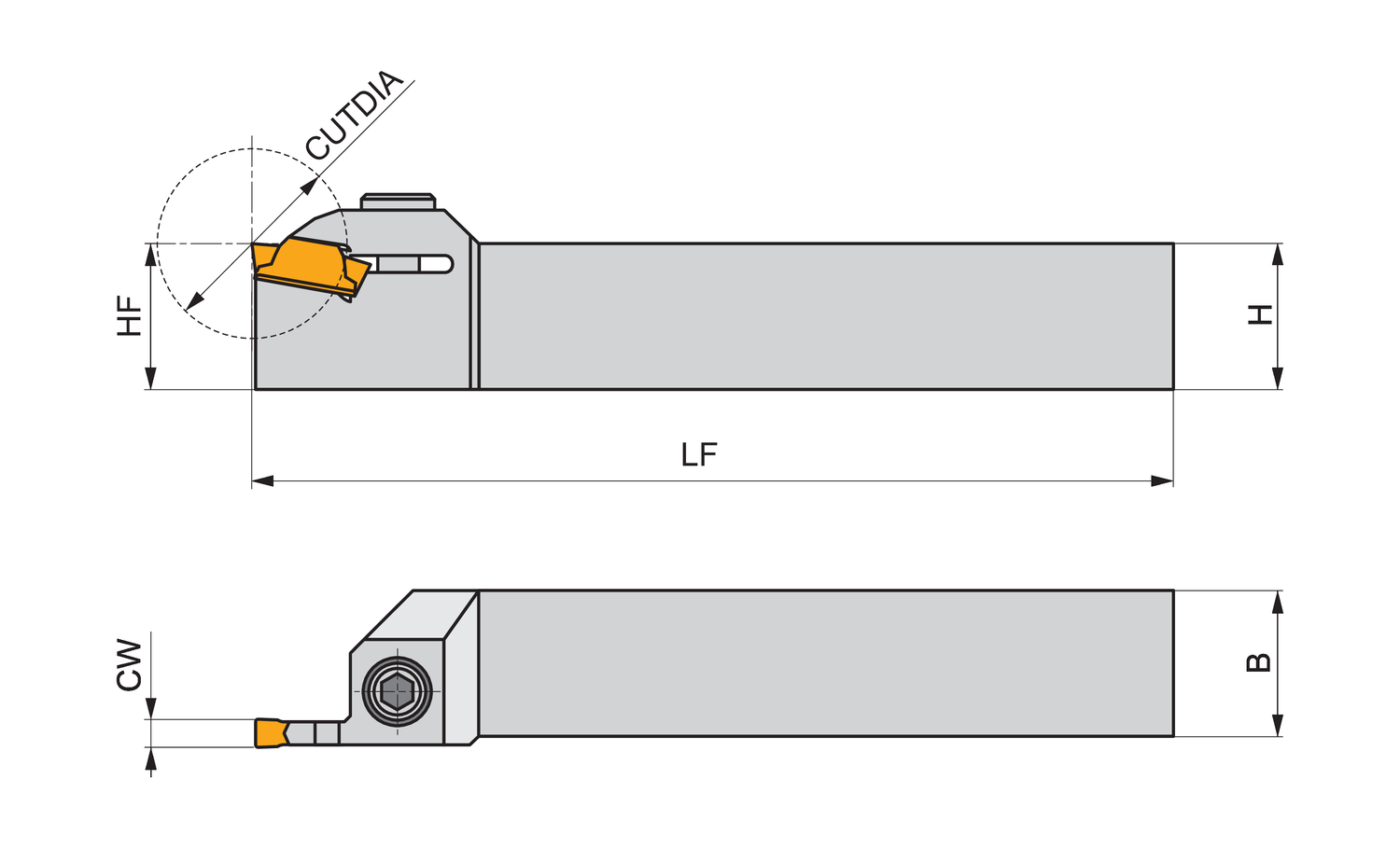

Clamping Type Code (MTP)
System G
Cutting width - inch (CW)
0.1575
Cutting width - millimeter (CW)
4
Direction of tool
Right
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Hand (Cutting direction)
Right
Insert group used in the tool
LCM. 0416..
Primary use
Medium machining
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Work piece parting diameter maximum - inch (CUTDIA)
0.9449
Work piece parting diameter maximum - millimeter (CUTDIA)
24
Top clamp grooving tool for holding a 16.4mm long double or single ended insert with 4mm cutting width (designation LCM.
0416.. ), right handed with insert parallel to the shank for a maximum parting diameter of 24mm, shank height 25mm, width 25mm and tool length 150mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off
