Pramet GL2-S12CFR-.79-3.15 7804078 Grooving And Parting-Off Tool For GL Inserts
MODEL 7804078
$152.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

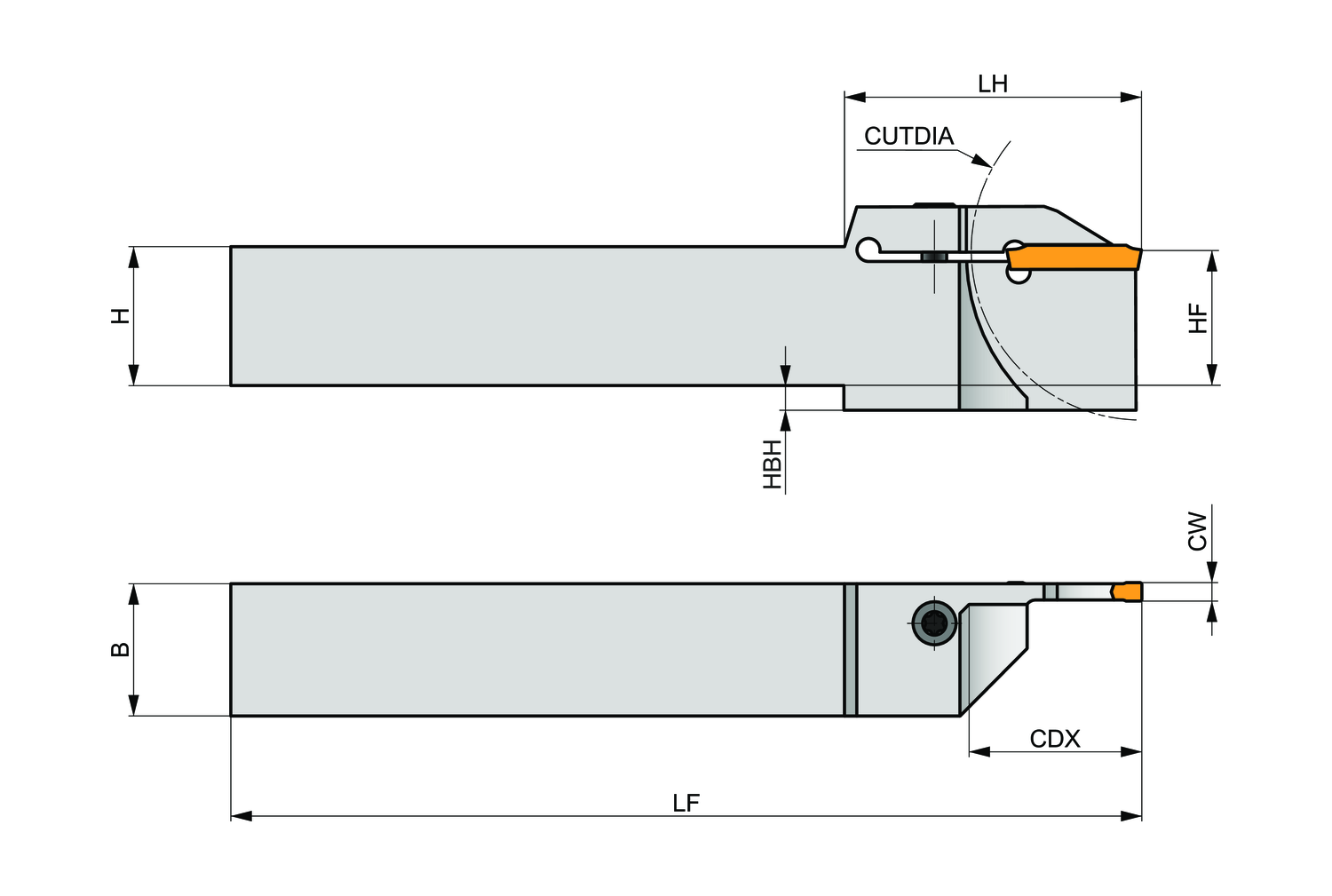

Clamping Type Code (MTP)
System G
Cutting depth maximum - inch (CDX)
0.79
Cutting width - inch (CW)
0.079
Direction of tool
Right
Functional height - inch (HF)
0.75
Functional length - inch (LF)
5
Head length - inch (LH)
1.7
Head length - millimeter (LH)
43.18
Insert group used in the tool
GL2..
Primary use
Finishing
Shank height - inch (H)
0.75
Shank width - inch (B)
0.75
Work piece parting diameter maximum - inch (CUTDIA)
3.15
Top clamp grooving tool for holding a 0,984" long double ended insert with 0.078-0.098" cutting width (designation GL2-D… ), right handed with insert parallel to the shank for a maximum parting diameter of 3.150", shank height 3/4", width 3/4" and tool length 5" for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off
