Image for Illustration purposes only. Actual product may vary
Pramet GL3-S08AFR-.47-1.57 8015992 Grooving And Parting-Off Tool For GL Inserts - For Sliding Head Machines
MODEL 8015992
$121.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

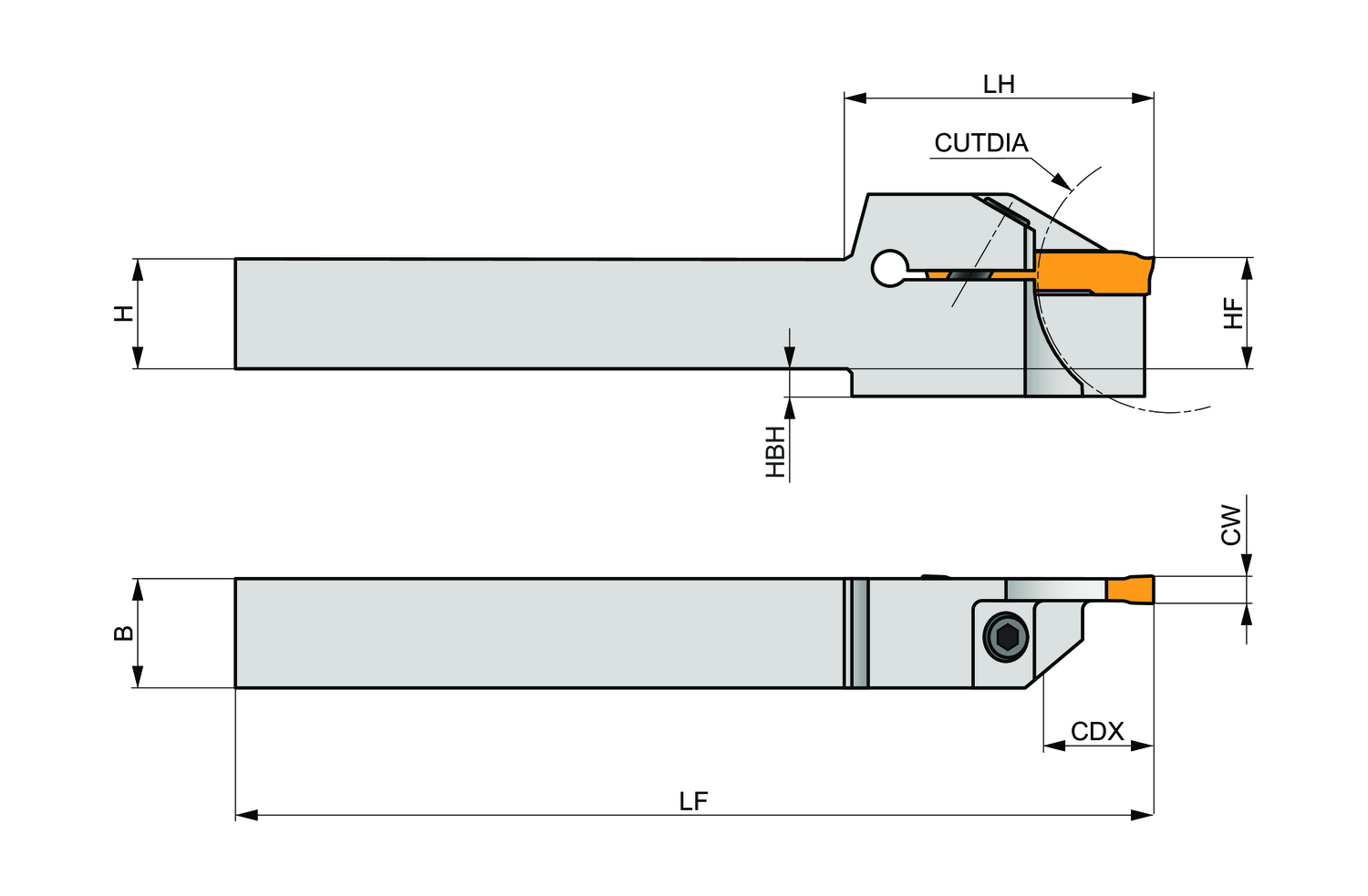

Clamping Type Code (MTP)
System G
Cutting depth maximum - inch (CDX)
0.47
Cutting width - inch (CW)
0.118
Direction of tool
Right
Functional height - inch (HF)
0.5
Functional length - inch (LF)
4
Head bottom offset height - inch (HBH)
0.118
Head length - inch (LH)
1.29
Head length - millimeter (LH)
32.77
Insert group used in the tool
GL3..
Primary use
Finishing
Shank height - inch (H)
0.5
Shank width - inch (B)
0.5
Work piece parting diameter maximum - inch (CUTDIA)
1.57
# Cutting Tools ## Overview Introducing the **Pramet GL3-S08AFR-.47-1.57 Grooving and Parting-Off Tool**, designed specifically for sliding head machines. This high-performance tool excels in precision cutting applications, making it an essential addition for machinists aiming to enhance their productivity in grooving and parting-off tasks. Engineered with cutting-edge technology, the GL3 tool is compatible with GL inserts, ensuring optimal performance and versatility across various metalworking operations. ## Key Features • **Precision Engineering**: Crafted for exacting tolerances, the GL3-S08AFR delivers superior accuracy in grooving and parting-off operations. • **Insert Compatibility**: Specifically designed for use with GL inserts, allowing for easy swapping and maintenance while minimizing downtime. • **Material Composition**: Manufactured from high-quality materials that provide exceptional wear resistance and longevity, ensuring reliable performance under rigorous conditions. • **Versatile Application**: Ideal for use in sliding head machines, making it suitable for various applications in the automotive, aerospace, and general machining sectors. • **User-Friendly Design**: Features a straightforward installation process and ergonomic handling, facilitating quick setups and minimizing operator fatigue. ## Applications • **Machining Operations**: Perfectly suited for grooving and parting-off processes in precision machining environments, particularly in sliding head applications. • **Industry Compatibility**: Effective for use in a wide range of industries, including automotive, aerospace, and general manufacturing, where high precision and efficiency are paramount. • **Operational Suitability**: Designed to perform optimally in both high-volume production and small batch work, allowing for flexibility in manufacturing setups. ## Benefits • **Enhanced Productivity**: The tool's precision and efficiency lead to reduced cycle times, maximizing output in machining operations. • **Increased Tool Life**: The durable construction minimizes wear, extending the tool's lifespan and reducing the frequency of replacements. • **Cost-Effective Solution**: By improving operational efficiency and reducing downtime, the GL3-S08AFR becomes a cost-effective choice for manufacturers focused on quality and productivity. --- *Product information compiled with AI assistance for reference purposes.*
