Pramet P61.SGR-A-0016M-06 7725319 Internal Circlip Grooving Boring Bar For X61 Inserts
MODEL 7725319
$152.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

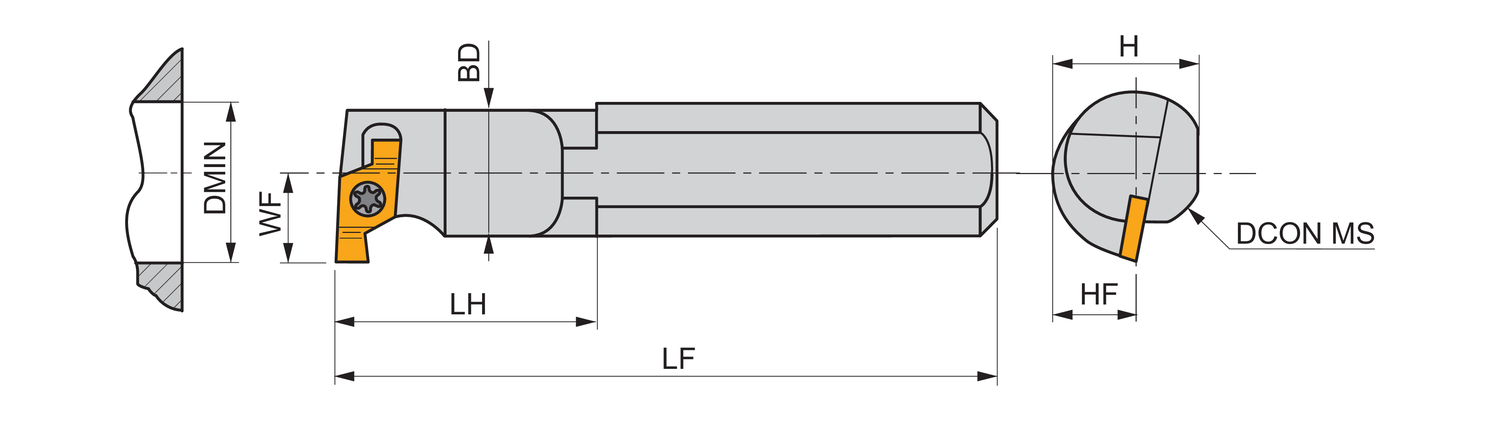

Body diameter - inch (BD)
0.591
Body diameter - millimeter (BD)
15
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.433
Functional width - millimeter (WF)
11
Head length - inch (LH)
1.142
Head length - millimeter (LH)
29
Insert group used in the tool
X61 0602..
Minimum bore diameter - inch (DMIN)
0.787
Minimum bore diameter - millimeter (DMIN)
20
Possible use
Medium machining
Primary use
Finishing
Shank height - inch (H)
0.591
Shank height - millimeter (H)
15
Tool cutting edge angle (KAPR)
0
Screw clamp grooving bar for holding a double ended insert with 0.85-3.20mm cutting width (designation X61 0602.. ), right handed with insert perpendicular to the shank, shank diameter 16mm and tool length 150mm for internal grooving
